HTL 28

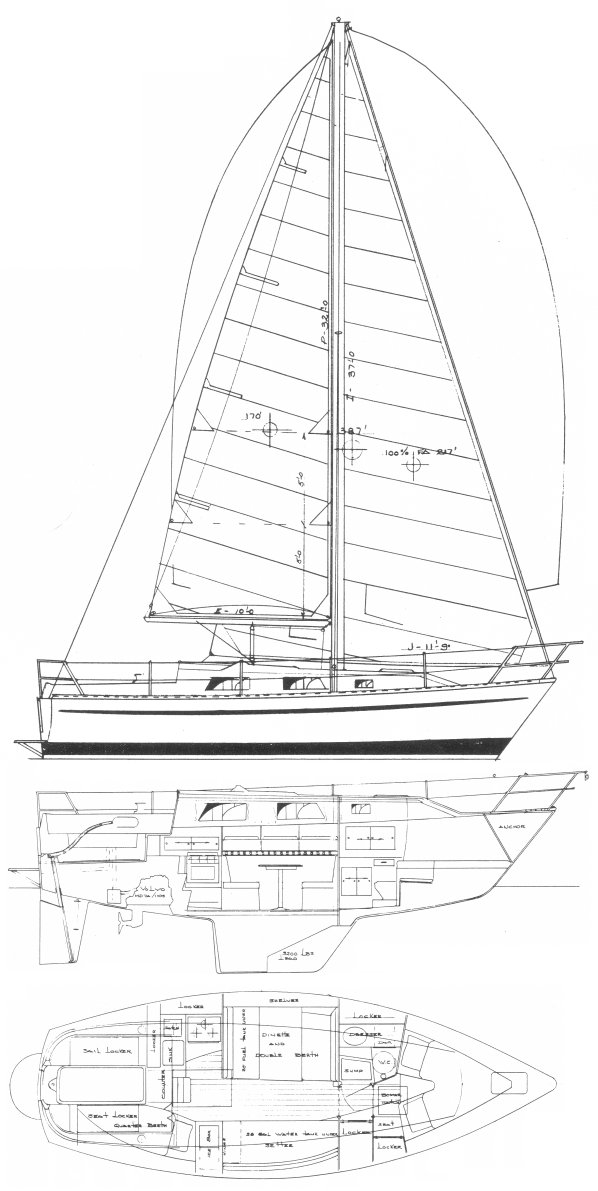

HTL 28 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
28.50 ft / 8.69 m
LWL:
25.00 ft / 7.62 m
S.A. (reported):
377.00 ft2 / 35.02 m2
Beam:
10.33 ft / 3.15 m
Draft (max):
4.75 ft / 1.45 m
Draft (min):
Displacement:
9,000 lb / 4,082 kg
Ballast:
3,200 lb / 1,451 kg
S.A./Disp.:
13.99
Bal./Disp.:
35.56
Disp./Len.:
257.14
Construction:
FG
Ballast Type:
Lead
First Built:
1981
Last Built:
# Built:
Builder:
HTL Fiberglass Ltd. (CAN)
Designer:
Stan Huntingford
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo
Model:
MDA/7A
Type:
Diesel
HP:
13
Water:
38 gals.
Fuel:
35 gals.

Sailboat Calculations

S.A./Disp.:
13.99
Bal./Disp.:
35.56
Disp./Len.:
257.14
Comfort Ratio:
23.81

Rig and Sail Particulars

I:
37.00 ft / 11.28 m
J:
11.75 ft / 3.58 m
P:
32.00 ft / 9.75 m
E:
10.00 ft / 3.05 m
SPL/TPS:
ISP:
S.A. Fore:
217.38 ft2 / 20.19 m2
S.A. Main:
160.00 ft2 / 14.86 m2
S.A. Total (100% Fore + Main Triangles)
377.38 ft2 / 35.06 m2
S.A./Disp. (calc.):
14.00
Est. Forestay Len.:
38.82 ft / 11.83 m
