HUSTLER 36

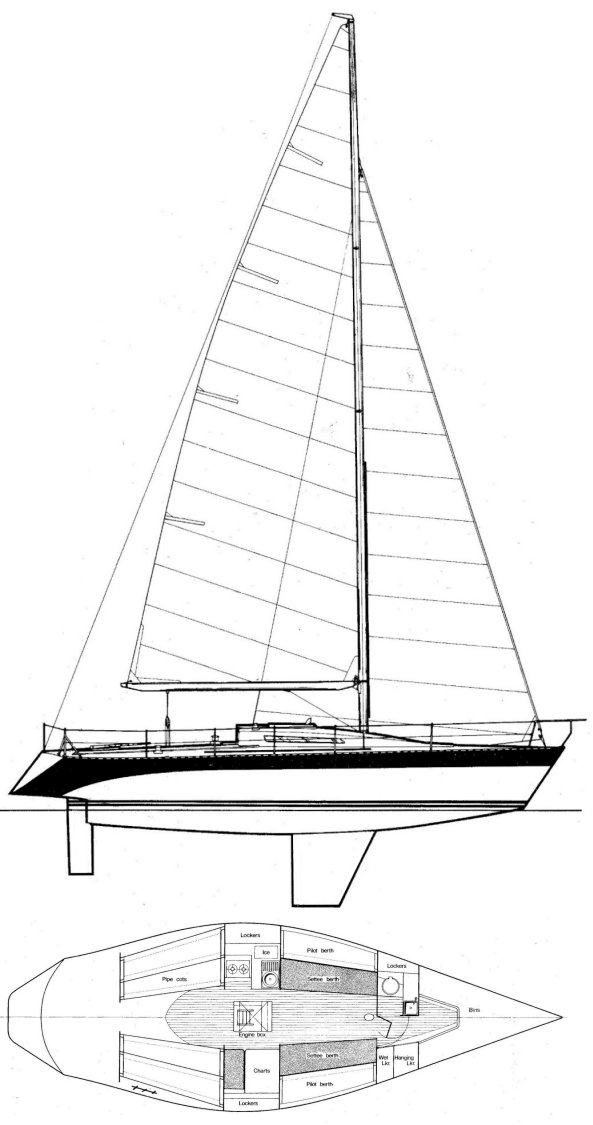

HUSTLER 36 photo HUSTLER 36 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
36.00 ft / 10.97 m
LWL:
28.50 ft / 8.69 m
Beam:
12.25 ft / 3.73 m
S.A. (reported):
566.00 ft2 / 52.58 m2
Draft (max):
6.25 ft / 1.91 m
Draft (min):
Displacement:
8,500 lb / 3,856 kg
Ballast:
3,950 lb / 1,792 kg
S.A./Disp.:
21.81
Bal./Disp.:
46.47
Disp./Len.:
163.92
Construction:
FG
Ballast Type:
Lead
First Built:
1979
Last Built:
1981
# Built:
10
Builder:
Vervale Yachts
Designer:
Stephen Jones
Website:

Sailboat Calculations

S.A./Disp.:
21.81
Bal./Disp.:
46.47
Disp./Len.:
163.92
Comfort Ratio:
15.19

Rig and Sail Particulars

I:
39.50 ft / 12.04 m
J:
11.80 ft / 3.60 m
P:
41.76 ft / 12.73 m
E:
15.93 ft / 4.86 m
SPL/TPS:
ISP:
S.A. Fore:
233.05 ft2 / 21.65 m2
S.A. Main:
332.62 ft2 / 30.90 m2
S.A. Total (100% Fore + Main Triangles)
565.67 ft2 / 52.55 m2
S.A./Disp. (calc.):
21.80
Est. Forestay Len.:
41.22 ft / 12.57 m

Sailboat Links

Designers:
Associations:

Notes

IOR 3/4 ton racer.
Based on 'Silver Shadow' (1978?).
Also sold as OYSTER 35 SJ.



.
