HYLAS 54

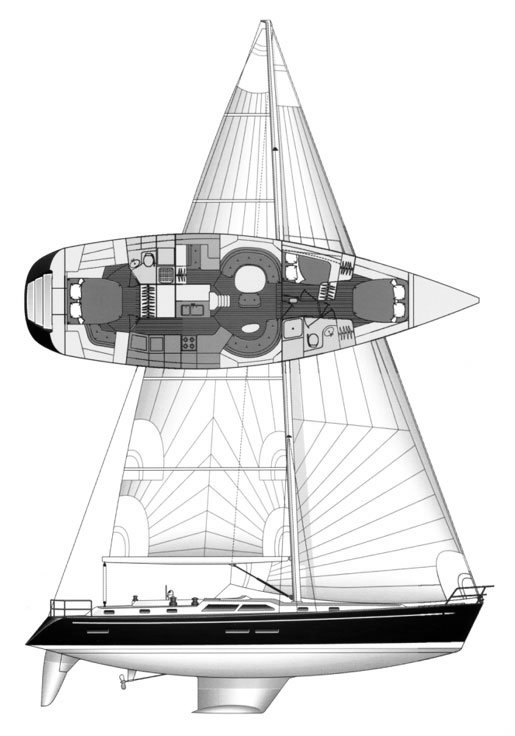

HYLAS 54 photo HYLAS 54 drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Cutter
LOA:
54.08 ft / 16.48 m
LWL:
46.00 ft / 14.02 m
S.A. (reported):
1,431.00 ft2 / 132.94 m2
Beam:
15.75 ft / 4.80 m
Draft (max):
7.16 ft / 2.18 m
Draft (min):
Displacement:
48,413 lb / 21,960 kg
Ballast:
20,018 lb / 9,080 kg
S.A./Disp.:
17.31
Bal./Disp.:
41.35
Disp./Len.:
222.04
Construction:
FG
Ballast Type:
First Built:
1999
Last Built:
# Built:
Builder:
Queen Long Marine Co. Ltd. (TAIWAN)
Designer:
German Frers
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Yanmar
Model:
4JH3-DTE
Type:
Diesel
HP:
140
Water:
264 gals.
Fuel:
291 gals.

Sailboat Calculations

S.A./Disp.:
17.31
Bal./Disp.:
41.35
Disp./Len.:
222.04
Comfort Ratio:
39.32

Rig and Sail Particulars

I:
71.90 ft / 21.92 m
J:
20.90 ft / 6.37 m
P:
63.80 ft / 19.45 m
E:
21.30 ft / 6.49 m
SPL/TPS:
ISP:
S.A. Fore:
751.36 ft2 / 69.80 m2
S.A. Main:
679.47 ft2 / 63.12 m2
S.A. Total (100% Fore + Main Triangles)
1,430.83 ft2 / 132.93 m2
S.A./Disp. (calc.):
17.31
Est. Forestay Len.:
74.88 ft / 22.82 m
Mast Height from DWL:
73.00 ft / 22.25 m

Sailboat Links

Notes

keel/cb version BU: 6.0' /BD: 10.0'



.
