HYLAS 70

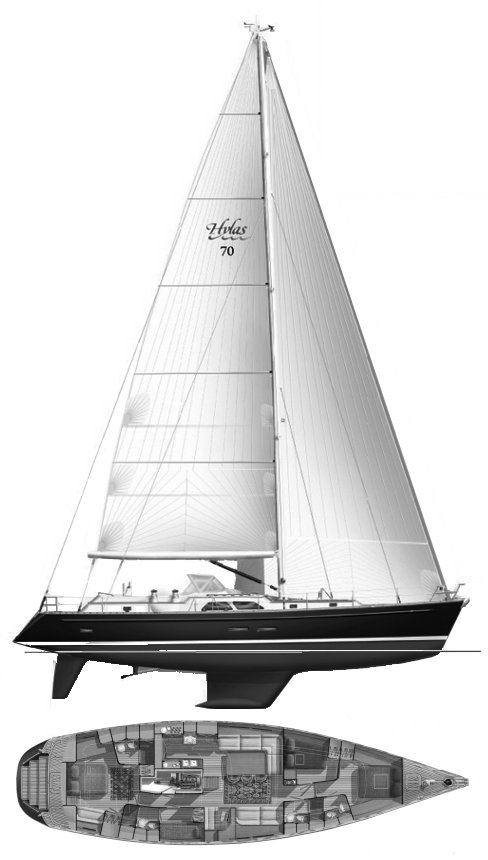

HYLAS 70 photo HYLAS 70 drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Sloop
LOA:
69.58 ft / 21.21 m
LWL:
61.58 ft / 18.77 m
S.A. (reported):
2,400.00 ft2 / 222.97 m2
Beam:
18.00 ft / 5.49 m
Draft (max):
11.83 ft / 3.61 m
Draft (min):
8.16 ft / 2.49 m
Displacement:
75,190 lb / 34,106 kg
Ballast:
28,980 lb / 13,145 kg
S.A./Disp.:
21.66
Bal./Disp.:
38.54
Disp./Len.:
143.75
Construction:
FG
Ballast Type:
First Built:
1995
Last Built:
# Built:
Builder:
Queen Long (TIAWAN)
Designer:
German Frers
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Yanmar
Model:
Type:
Diesel
HP:
240
Water:
400 gals.
Fuel:
700 gals.

Sailboat Calculations

S.A./Disp.:
21.66
Bal./Disp.:
38.54
Disp./Len.:
143.75
Comfort Ratio:
38.70

Sailboat Links

Designers:
Builders:

Notes

Draft fin keel version:9.5'



.
