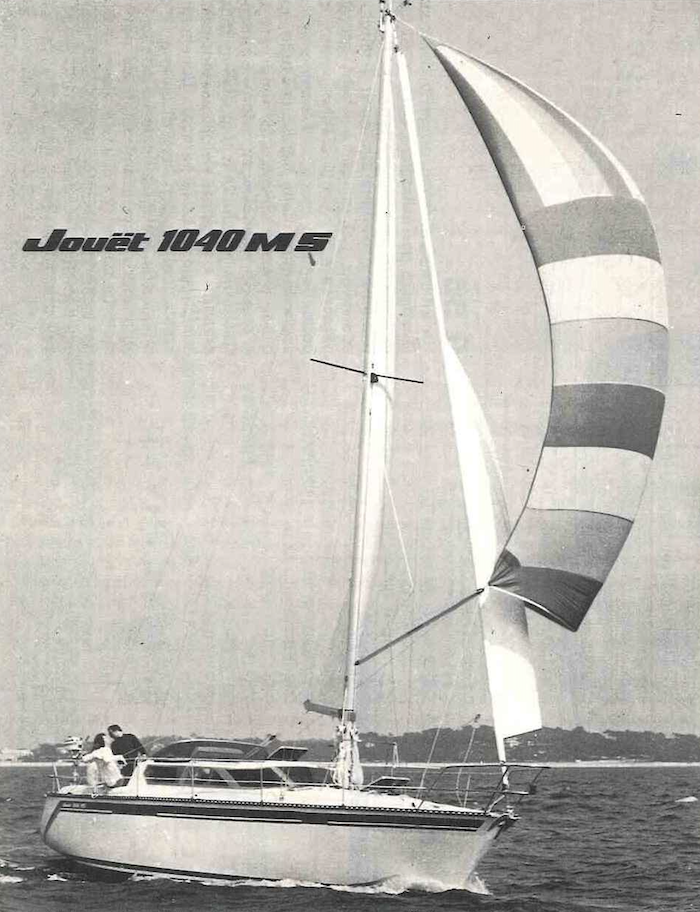

JOUËT 1040

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
34.08 ft / 10.39 m
LWL:
28.75 ft / 8.76 m
S.A. (reported):
530.00 ft2 / 49.24 m2
Beam:
11.67 ft / 3.56 m
Draft (max):
5.16 ft / 1.57 m
Draft (min):
Displacement:
9,600 lb / 4,354 kg
Ballast:
S.A./Disp.:
18.84
Bal./Disp.:
Disp./Len.:
180.35
Construction:
FG
Ballast Type:
First Built:
1981
Last Built:
# Built:
Builder:
Yachting France
Designer:
Yves Marechal
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
18.84
Bal./Disp.:
Disp./Len.:
180.35
Comfort Ratio:
18.54

Rig and Sail Particulars

I:
42.00 ft / 12.80 m
J:
11.15 ft / 3.40 m
P:
42.50 ft / 12.95 m
E:
13.91 ft / 4.24 m
SPL/TPS:
ISP:
S.A. Fore:
234.15 ft2 / 21.75 m2
S.A. Main:
295.59 ft2 / 27.46 m2
S.A. Total (100% Fore + Main Triangles)
529.74 ft2 / 49.21 m2
S.A./Disp. (calc.):
18.83
Est. Forestay Len.:
43.45 ft / 13.25 m
