JUBILEE 40

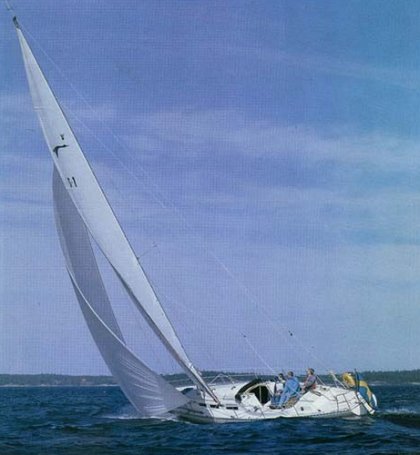

JUBILEE 40 photo JUBILEE 40 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
47.24 ft / 14.40 m
LWL:
35.10 ft / 10.70 m
S.A. (reported):
699.00 ft2 / 64.94 m2
Beam:
8.86 ft / 2.70 m
Draft (max):
6.56 ft / 2.00 m
Draft (min):
Displacement:
11,684 lb / 5,300 kg
Ballast:
5,622 lb / 2,550 kg
S.A./Disp.:
21.80
Bal./Disp.:
48.12
Disp./Len.:
120.62
Construction:
FG
Ballast Type:
First Built:
1990
Last Built:
# Built:
9
Builder:
Tufa Marin
Designer:
Knud Reimers /Peter Norlin
Website:

Sailboat Calculations

S.A./Disp.:
21.80
Bal./Disp.:
48.12
Disp./Len.:
120.62
Comfort Ratio:
25.49

Sailboat Links

Notes

The name celebrates Knud Reimers 50th birthday.



.
