KORSAR

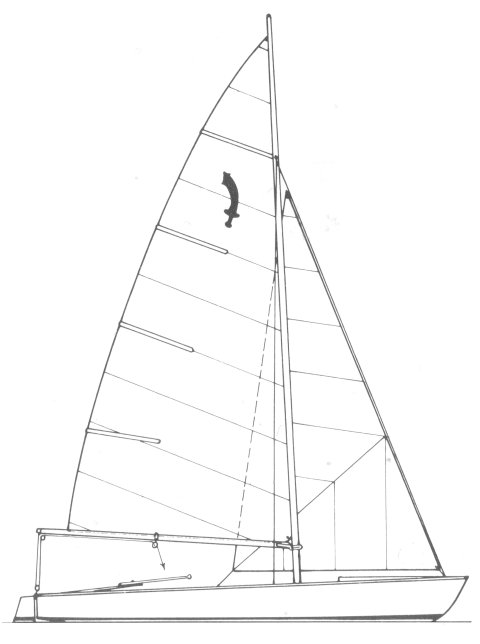

KORSAR photo KORSAR drawing

Sailboat Specifications


Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
LOA:
16.40 ft / 5.00 m
LWL:
S.A. (reported):
158.00 ft2 / 14.68 m2
Beam:
5.58 ft / 1.70 m
Draft (max):
3.28 ft / 1.00 m
Draft (min):
0.33 ft / 0.10 m
Displacement:
220 lb / 100 kg
Ballast:
S.A./Disp.:
69.43
Bal./Disp.:
Disp./Len.:
Construction:
Wood or FG
Ballast Type:
First Built:
1958
Last Built:
# Built:
Builder:
Leonhard Mader/Jürgen Hein (GER)
Designer:
Ernst Lehfeld
Website:

Sailboat Calculations

S.A./Disp.:
69.43
Bal./Disp.:
Disp./Len.:

Sailboat Links

Notes

Spinnaker: 159 sq. ft.



.
