KYLIX 27

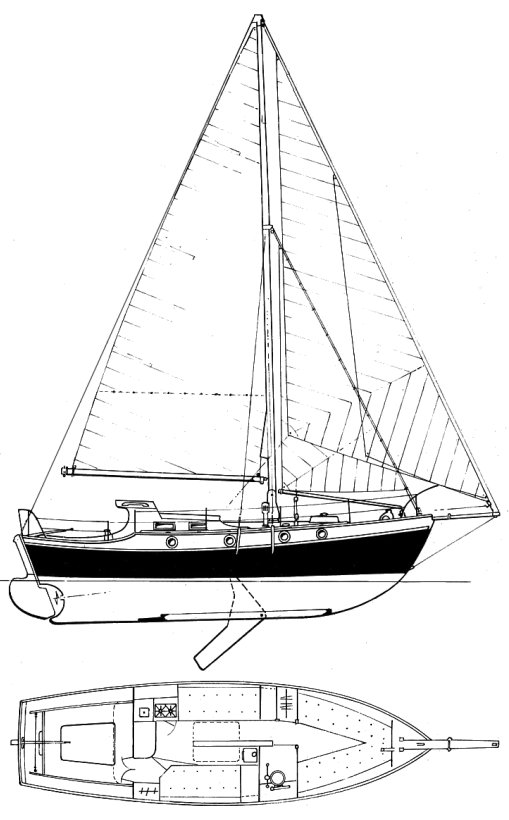

KYLIX 27 drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Cutter
LOA:
27.00 ft / 8.23 m
LWL:
23.42 ft / 7.14 m
S.A. (reported):
377.00 ft2 / 35.02 m2
Beam:
8.17 ft / 2.49 m
Draft (max):
6.23 ft / 1.90 m
Draft (min):
3.02 ft / 0.92 m
Displacement:
15,679 lb / 7,112 kg
Ballast:
S.A./Disp.:
9.66
Bal./Disp.:
Disp./Len.:
544.89
Construction:
Wood
Ballast Type:
Iron
First Built:
1979
Last Built:
# Built:
Builder:
G. F. Smeeth/Bure Marine (UK)
Designer:
Maurice Griffiths
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Saab
Model:
Type:
Diesel
HP:
10

Sailboat Calculations

S.A./Disp.:
9.66
Bal./Disp.:
Disp./Len.:
544.89
Comfort Ratio:
60.27

Sailboat Links

Notes

Based on Griffith's own 'Kylix', This is the slightly modified MkII version. A longer version, the KYLIX 29 was also built (4 boats?).



.
