LILL SCAMPI 26

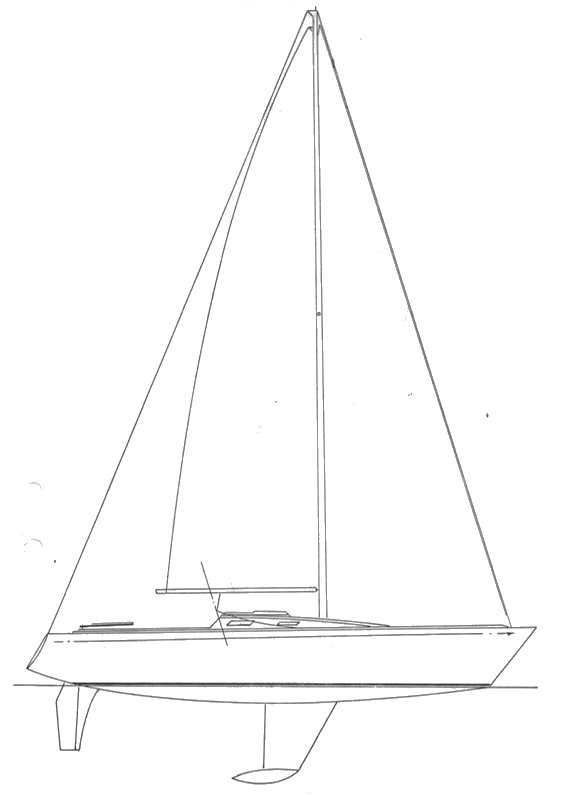

LILL SCAMPI 26 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
25.33 ft / 7.72 m
LWL:
19.33 ft / 5.89 m
S.A. (reported):
238.00 ft2 / 22.11 m2
Beam:
8.33 ft / 2.54 m
Draft (max):
4.83 ft / 1.47 m
Draft (min):
Displacement:
4,189 lb / 1,900 kg
Ballast:
1,800 lb / 816 kg
S.A./Disp.:
14.69
Bal./Disp.:
42.97
Disp./Len.:
258.92
Construction:
FG
Ballast Type:
First Built:
1972
Last Built:
# Built:
Builder:
Arme Batt (NOR)/Solna Marin (SWE)
Designer:
Peter Norlin
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Vire
Model:
Type:
Gas
HP:
7

Sailboat Calculations

S.A./Disp.:
14.69
Bal./Disp.:
42.97
Disp./Len.:
258.92
Comfort Ratio:
18.19

Rig and Sail Particulars

I:
30.35 ft / 9.25 m
J:
9.02 ft / 2.75 m
P:
27.39 ft / 8.35 m
E:
7.38 ft / 2.25 m
SPL/TPS:
ISP:
S.A. Fore:
136.88 ft2 / 12.72 m2
S.A. Main:
101.07 ft2 / 9.39 m2
S.A. Total (100% Fore + Main Triangles)
237.95 ft2 / 22.11 m2
S.A./Disp. (calc.):
14.69
Est. Forestay Len.:
31.66 ft / 9.65 m

Sailboat Links

Designers:
Associations:
Related Sailboats:

Notes

Originally called IW-26, built in Sweden. Also called SCAMPI 26. Last builder: Avaldaplast of Sweden. Designed as IOR 1/4 ton. (2nd place 1972 1/4 ton cup at La Rochelle, France).



.
