LIPPINCOTT 30

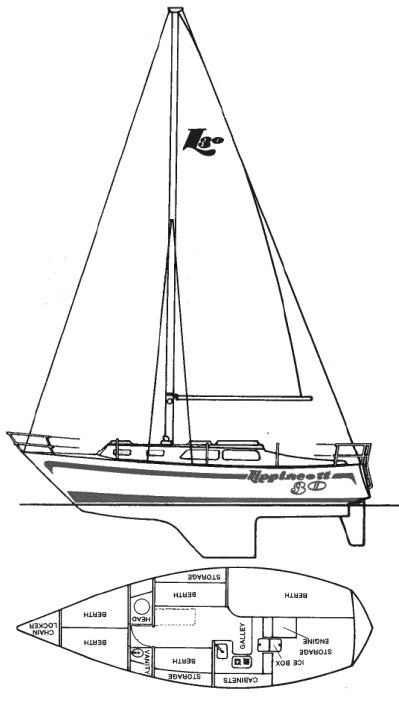

LIPPINCOTT 30 photo LIPPINCOTT 30 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
30.33 ft / 9.24 m
LWL:
25.00 ft / 7.62 m
Beam:
10.00 ft / 3.05 m
S.A. (reported):
454.00 ft2 / 42.18 m2
Draft (max):
4.90 ft / 1.49 m
Draft (min):
Displacement:
8,600 lb / 3,901 kg
Ballast:
4,000 lb / 1,814 kg
S.A./Disp.:
17.36
Bal./Disp.:
46.51
Disp./Len.:
245.71
Construction:
FG
Ballast Type:
Lead
First Built:
1979
Last Built:
1986
# Built:
100
Builder:
Riverton Boat Works (USA)
Designer:
Howard Lippincott Jr.
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Yanmar
Model:
2GMF
Type:
Diesel
HP:
15
Water:
30 gals / 114 L
Fuel:
12 gals / 45 L

Sailboat Calculations

S.A./Disp.:
17.36
Bal./Disp.:
46.51
Disp./Len.:
245.71
Comfort Ratio:
23.27
Capsize Screening Formula:
1.96

Rig and Sail Particulars

I:
39.00 ft / 11.89 m
J:
12.50 ft / 3.81 m
P:
35.00 ft / 10.67 m
E:
12.00 ft / 3.66 m
SPL/TPS:
ISP:
S.A. Fore:
243.75 ft2 / 22.65 m2
S.A. Main:
210.00 ft2 / 19.51 m2
S.A. Total (100% Fore + Main Triangles)
453.75 ft2 / 42.15 m2
S.A./Disp. (calc.):
17.35
Est. Forestay Len.:
40.95 ft / 12.48 m
Mast Height from DWL:
45.00 ft / 13.72 m

Sailboat Links

Notes

Shoal draft: 4.16'/1.27m.
Dimensions and drawing from original brochure.
