LOKI 38 (S&S)

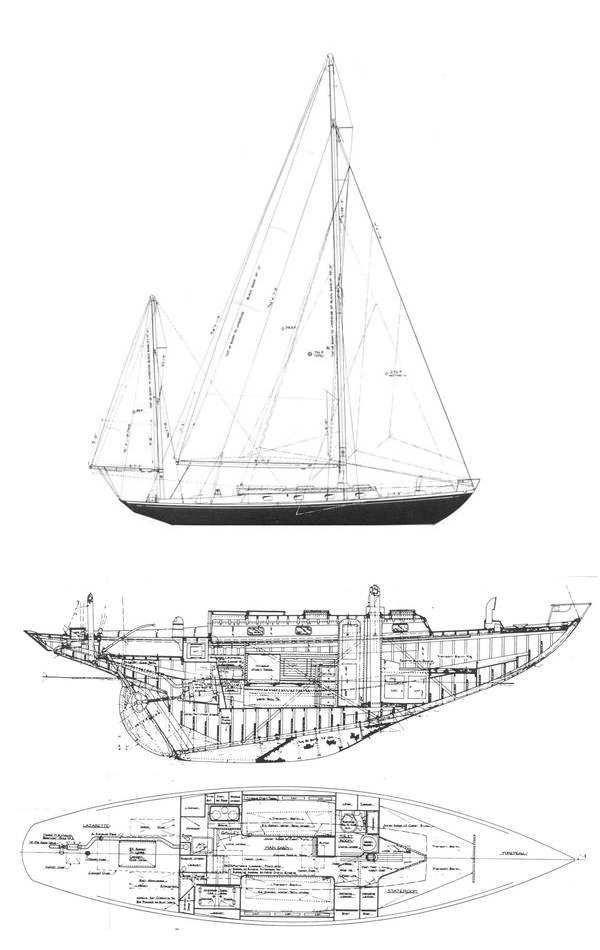

LOKI 38 (S&S) photo LOKI 38 (S&S) drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Masthead Yawl
LOA:
38.33 ft / 11.68 m
LWL:
26.00 ft / 7.92 m
Beam:
9.58 ft / 2.92 m
S.A. (reported):
701.00 ft2 / 65.13 m2
Draft (max):
5.67 ft / 1.73 m
Draft (min):
Displacement:
18,000 lb / 8,165 kg
Ballast:
7,560 lb / 3,429 kg
S.A./Disp.:
16.39
Bal./Disp.:
42.00
Disp./Len.:
457.20
Construction:
Wood (Mahogany on Oak)
Ballast Type:
Lead
First Built:
1949
Last Built:
1955
# Built:
12
Builder:
H.Heidtmann (GERMANY)/Nevins (USA)
Designer:
Sparkman & Stephens
Website:

Sailboat Calculations

S.A./Disp.:
16.39
Bal./Disp.:
42.00
Disp./Len.:
457.20
Comfort Ratio:
46.17
Capsize Screening Formula:
1.46

Sailboat Links

Notes

S&S# 1001/1001G
First (1949) built by Nevins. 9 boats by Heidtmann, (1953).
All were rigged as yawls.
