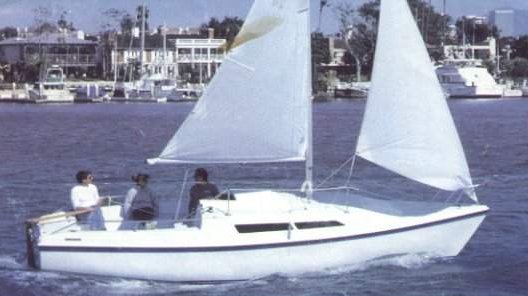

MACGREGOR 26D

Sailboat Specifications

both US imperial metric

Hull Type:

Daggerboard

Rigging Type:

Fractional Sloop

LOA:

25.83 ft / 7.87 m

LWL:

23.50 ft / 7.16 m

Beam:

7.92 ft / 2.41 m

S.A. (reported):

236.00 ft² / 21.93 m²

Draft (max):

5.33 ft / 1.62 m

Draft (min):

1.25 ft / 0.38 m

Displacement:

2,850 lb / 1,293 kg

Ballast:

1,200 lb / 544 kg

S.A./Disp.:

18.83

Bal./Disp.:

42.11

Disp./Len.:

98.04

Construction:

FG

Ballast Type:

Water

First Built:

1986

Last Built:

1989

Builder:

Macgregor Yacht Corp. (USA)

Designer:

Roger Macgregor

Sailboat Calculations

Definitions

S.A./Disp.:

18.83

Bal./Disp.:

42.11

Disp./Len.:

98.04

Comfort Ratio:

11.56

Capsize Screening Formula:

2.24

Sailboat Links

Designers:

Roger MacGregor

Builders:

Macgregor Yacht Corp

Related Sailboats:

MACGREGOR 26S

Download Boat Record:

PDF

Notes

Modified with centerboard in 1990 (MACGREGOR 26S).
