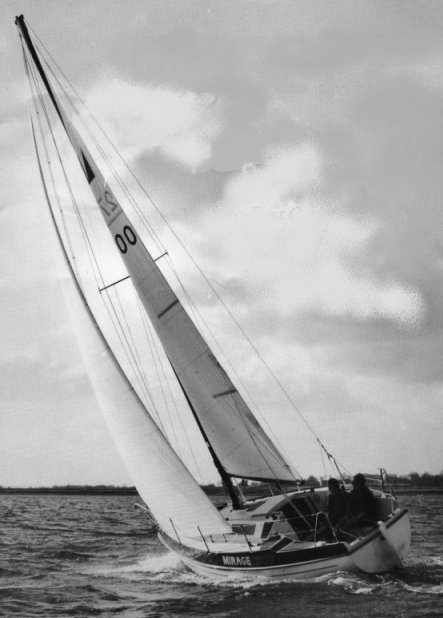

MIRAGE 2700 (UK)

Sailboat Specifications

both US imperial metric

Hull Type:

Twin Keel

Rigging Type:

Masthead Sloop

LOA:

25.42 ft / 7.75 m

LWL:

21.00 ft / 6.40 m

Beam:

9.42 ft / 2.87 m

S.A. (reported):

290.00 ft² / 26.94 m²

Draft (max):

3.50 ft / 1.07 m

Displacement:

6,000 lb / 2,722 kg

Ballast:

2,850 lb / 1,293 kg

S.A./Disp.:

14.10

Bal./Disp.:

47.50

Disp./Len.:

289.23

Construction:

FG

Ballast Type:

Iron

First Built:

1979

Builder:

Thames Marine (UK)

Designer:

Feltham/Thames Marine

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo

Model:

MD7B

Type:

Diesel

Fuel:

10 gals / 38 L

Sailboat Calculations

Definitions

S.A./Disp.:

14.10

Bal./Disp.:

47.50

Disp./Len.:

289.23

Comfort Ratio:

20.94

Capsize Screening Formula:

2.08

Accommodations

Water:

22 gals / 83 L

Sailboat Links

Builders:

Thames Marine (UK)

Associations:

Snapdragon, Mirage and Invaders Association

Download Boat Record:

PDF

Notes

It is thought that the MIRAGE 2700 is based on the hull of the Feltham designed MIRAGE 28, but with a raised deck and truncated stern. Similar to the LEISURE 27SL.
Available with a fin keel, draft: 1.44m / 5ft
