MIRAGE 37 (FELTHAM)

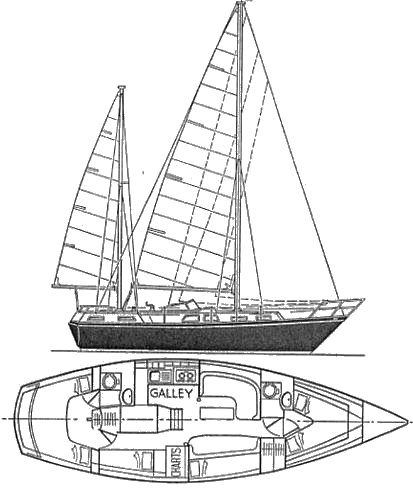

MIRAGE 37 (FELTHAM) photo MIRAGE 37 (FELTHAM) drawing

Sailboat Specifications


Hull Type:
Twin Keel
Rigging Type:
Masthead Ketch
LOA:
36.17 ft / 11.02 m
LWL:
27.92 ft / 8.51 m
Beam:
11.70 ft / 3.57 m
S.A. (reported):
550.00 ft2 / 51.10 m2
Draft (max):
4.50 ft / 1.37 m
Draft (min):
Displacement:
14,720 lb / 6,677 kg
Ballast:
6,000 lb / 2,722 kg
S.A./Disp.:
14.70
Bal./Disp.:
40.76
Disp./Len.:
301.94
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
# Built:
24
Builder:
Mirage/Thames Marine (UK)
Designer:
David Feltham
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Thornycraft
Model:
154
Type:
Diesel
HP:
Water:
50 gals / 189 L
Fuel:
50 gals / 189 L

Sailboat Calculations

S.A./Disp.:
14.70
Bal./Disp.:
40.76
Disp./Len.:
301.94
Comfort Ratio:
28.28
Capsize Screening Formula:
1.91

Sailboat Links

Notes

Fin keel vers. draft 1.68m/5.51'



.
