MONSUN 31

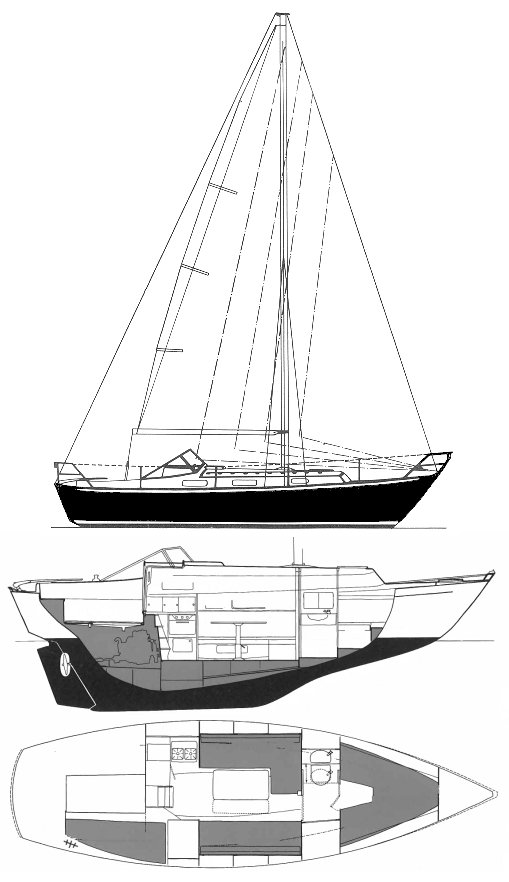

MONSUN 31 photo MONSUN 31 drawing

Sailboat Specifications


Hull Type:
Rigging Type:
LOA:
30.75 ft / 9.37 m
LWL:
24.67 ft / 7.52 m
S.A. (reported):
414.00 ft2 / 38.46 m2
Beam:
9.42 ft / 2.87 m
Draft (max):
4.58 ft / 1.40 m
Draft (min):
Displacement:
9,250 lb / 4,196 kg
Ballast:
4,200 lb / 1,905 kg
S.A./Disp.:
15.08
Bal./Disp.:
45.41
Disp./Len.:
275.03
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
1982
# Built:
904
Builder:
Hallberg-Rassy
Designer:
Olle Enderlein
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
MD 11 C
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
15.08
Bal./Disp.:
45.41
Disp./Len.:
275.03
Comfort Ratio:
27.20

Rig and Sail Particulars

I:
37.80 ft / 11.52 m
J:
11.90 ft / 3.63 m
P:
32.80 ft / 10.00 m
E:
11.50 ft / 3.51 m
SPL/TPS:
ISP:
S.A. Fore:
224.91 ft2 / 20.89 m2
S.A. Main:
188.60 ft2 / 17.52 m2
S.A. Total (100% Fore + Main Triangles)
413.51 ft2 / 38.42 m2
S.A./Disp. (calc.):
15.06
Est. Forestay Len.:
39.63 ft / 12.08 m

Sailboat Links

Designers:
Builders:

Notes

Also sold as RASMUS 31.



.
