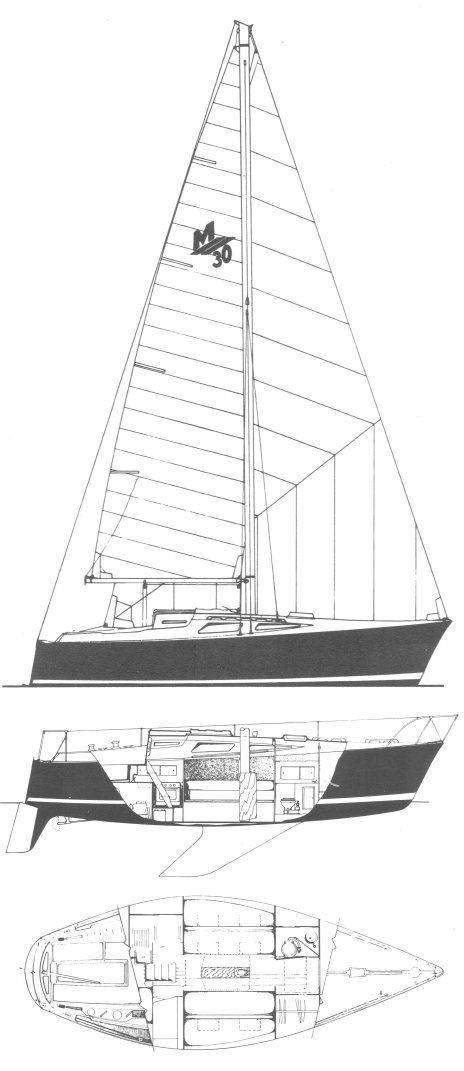

MORGAN 30-2

Sailboat Specifications

both US imperial metric

Hull Type:

Fin with rudder on skeg

Rigging Type:

Masthead Sloop

LOA:

29.41 ft / 8.96 m

LWL:

27.50 ft / 8.38 m

Beam:

11.33 ft / 3.45 m

S.A. (reported):

503.00 ft² / 46.73 m²

Draft (max):

5.25 ft / 1.60 m

Displacement:

10,000 lb / 4,536 kg

Ballast:

5,000 lb / 2,268 kg

S.A./Disp.:

17.40

Bal./Disp.:

50.00

Disp./Len.:

214.66

Construction:

FG

Ballast Type:

Lead

First Built:

1972

Last Built:

1976

Builder:

Morgan Yachts (USA)

Designer:

Charles Morgan

Auxiliary Power/Tanks (orig. equip.)

Make:

Universal

Model:

Atomic 4

Type:

Gas

Fuel:

14 gals / 53 L

Sailboat Calculations

Definitions

S.A./Disp.:

17.40

Bal./Disp.:

50.00

Disp./Len.:

214.66

Comfort Ratio:

21.71

Capsize Screening Formula:

2.11

S#:

2.58

Rig and Sail Particulars

help

I:

43.00 ft / 13.11 m

J:

13.67 ft / 4.17 m

P:

38.00 ft / 11.58 m

E:

11.00 ft / 3.35 m

S.A. Fore:

293.91 ft² / 27.30 m²

S.A. Main:

209.00 ft² / 19.42 m²

S.A. Total (100% Fore + Main Triangles)

502.91 ft² / 46.72 m²

S.A./Disp. (calc.):

17.39

Est. Forestay Len.:

45.12 ft / 13.75 m

Accommodations

Water:

30 gals / 114 L

Sailboat Links

Designers:

Charles Morgan

Builders:

Morgan Yachts

Download Boat Record:

PDF

Notes

Entirely different from an earlier MORGAN 30 (1968) from the same builder and designer.
