MORGAN 33

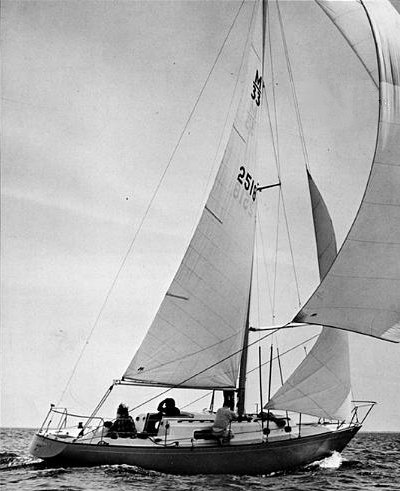

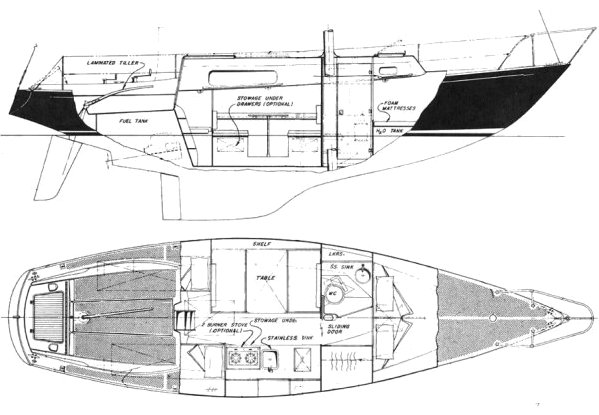

MORGAN 33 insignia MORGAN 33 photo MORGAN 33 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
33.30 ft / 10.15 m
LWL:
24.26 ft / 7.39 m
S.A. (reported):
502.00 ft2 / 46.64 m2
Beam:
9.33 ft / 2.84 m
Draft (max):
5.00 ft / 1.52 m
Draft (min):
Displacement:
11,000 lb / 4,990 kg
Ballast:
5,000 lb / 2,268 kg
S.A./Disp.:
16.29
Bal./Disp.:
45.45
Disp./Len.:
343.93
Construction:
FG
Ballast Type:
Lead
First Built:
1968
Last Built:
1972
# Built:
75
Builder:
Morgan Yachts (USA)
Designer:
Charles Morgan
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Universal
Model:
Atomic 4
Type:
Gas
HP:
30
Water:
34 gals.
Fuel:
14 gals.

Sailboat Calculations

S.A./Disp.:
16.29
Bal./Disp.:
45.45
Disp./Len.:
343.93
Comfort Ratio:
32.18

Rig and Sail Particulars

I:
39.50 ft / 12.04 m
J:
13.00 ft / 3.96 m
P:
34.30 ft / 10.45 m
E:
14.30 ft / 4.36 m
SPL/TPS:
ISP:
S.A. Fore:
256.75 ft2 / 23.85 m2
S.A. Main:
245.25 ft2 / 22.78 m2
S.A. Total (100% Fore + Main Triangles)
502.00 ft2 / 46.64 m2
S.A./Disp. (calc.):
16.29
Est. Forestay Len.:
41.58 ft / 12.67 m

Sailboat Links

Designers:
Builders:

Notes

Images from Morgan Yachts brochure.



.
