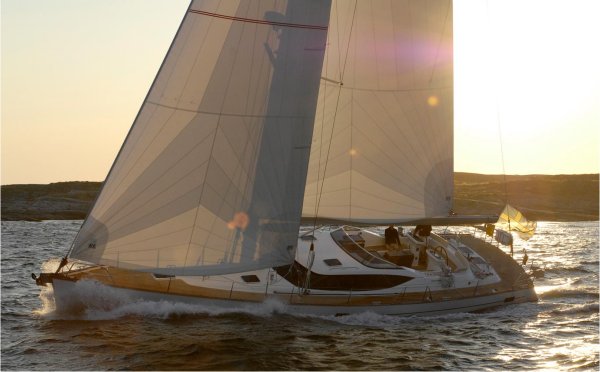

NAJAD 570

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/bulb & spade rudder

Rigging Type:

Fractional Sloop

LOA:

57.41 ft / 17.50 m

LWL:

54.30 ft / 16.55 m

Beam:

16.57 ft / 5.05 m

S.A. (reported):

1,345.00 ft² / 124.95 m²

Draft (max):

8.86 ft / 2.70 m

Displacement:

57,320 lb / 26,000 kg

Ballast:

17,747 lb / 8,050 kg

S.A./Disp.:

14.54

Bal./Disp.:

30.96

Disp./Len.:

159.83

Construction:

FG

First Built:

2007

Builder:

Najad Yachts (SWE)

Designer:

Judel/Vrolijk

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo Penta

Model:

D4-180

Type:

Diesel

HP:

180

Fuel:

317 gals / 1,200 L

Sailboat Calculations

Definitions

S.A./Disp.:

14.54

Bal./Disp.:

30.96

Disp./Len.:

159.83

Comfort Ratio:

38.15

Capsize Screening Formula:

1.72

Rig and Sail Particulars

help

Mast Height from DWL:

88.60 ft / 27.01 m

Accommodations

Water:

211 gals / 799 L

Sailboat Links

Designers:

Judel/Vrolijk & Co.

Builders:

Najad Yachts (SWE)

Download Boat Record:

PDF
