NEWPORT 30-3

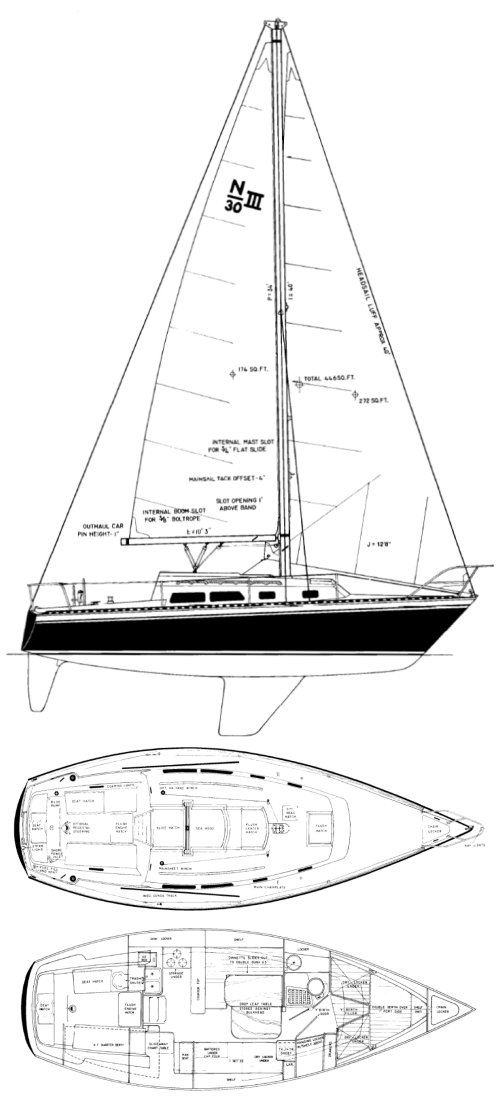

NEWPORT 30-3 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
30.00 ft / 9.14 m
LWL:
26.50 ft / 8.08 m
S.A. (reported):
427.00 ft2 / 39.67 m2
Beam:
10.67 ft / 3.25 m
Draft (max):
5.17 ft / 1.58 m
Draft (min):
Displacement:
8,500 lb / 3,856 kg
Ballast:
2,600 lb / 1,179 kg
S.A./Disp.:
16.46
Bal./Disp.:
30.59
Disp./Len.:
203.91
Construction:
FG
Ballast Type:
First Built:
1984
Last Built:
# Built:
Builder:
Capital Yachts Inc. (USA)
Designer:
Gary Mull
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Universal
Model:
M018
Type:
Diesel
HP:
Water:
70 gals.
Fuel:
30 gals.

Sailboat Calculations

S.A./Disp.:
16.46
Bal./Disp.:
30.59
Disp./Len.:
203.91
Comfort Ratio:
20.37

Rig and Sail Particulars

I:
40.00 ft / 12.19 m
J:
12.67 ft / 3.86 m
P:
34.00 ft / 10.36 m
E:
10.25 ft / 3.12 m
SPL/TPS:
ISP:
S.A. Fore:
253.40 ft2 / 23.54 m2
S.A. Main:
174.25 ft2 / 16.19 m2
S.A. Total (100% Fore + Main Triangles)
427.65 ft2 / 39.73 m2
S.A./Disp. (calc.):
16.48
Est. Forestay Len.:
41.96 ft / 12.79 m

Sailboat Links

Notes

Differing from the earlier MkI & MkII models: The NEWPORT 30 MkIII is more cruising oriented. Wheel steering and diesel power was included as standard equipment. Shoal draft: 4.00'/1.22m Tall Rig: I: 43.00' / 13.11m J: 12.50' / 3.81m P: 37.00' / 11.28m E: 10.30' / 3.14m SA(Fore.): 268.75 ft2 / 24.97 m2 SA(Main): 190.55 ft2 / 17.70 m2 Sail Area (100% fore+main triangles): 459.30 ft2 / 42.67 m2



.
