NICHOLSON 33 3/4 TON

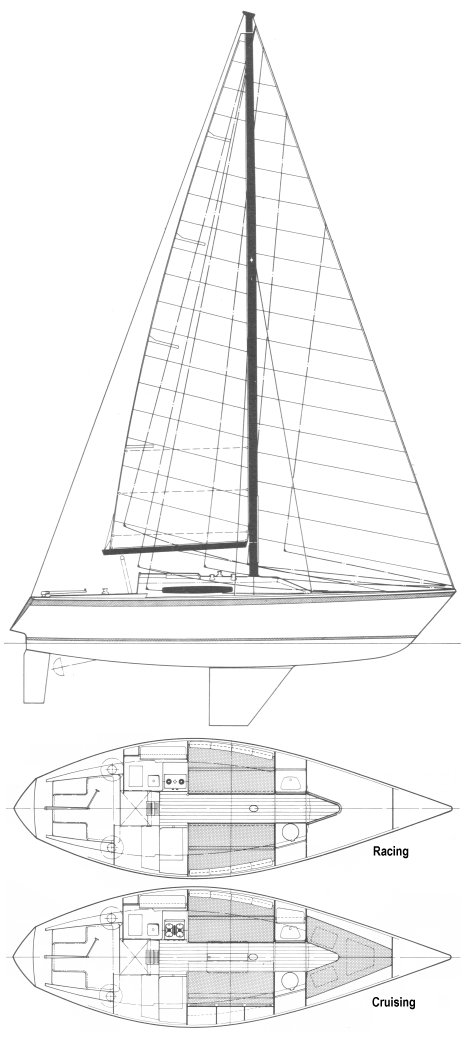

NICHOLSON 33 3/4 TON photo NICHOLSON 33 3/4 TON drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
32.08 ft / 9.78 m
LWL:
27.58 ft / 8.41 m
S.A. (reported):
496.00 ft2 / 46.08 m2
Beam:
10.42 ft / 3.18 m
Draft (max):
5.92 ft / 1.80 m
Draft (min):
Displacement:
10,054 lb / 4,560 kg
Ballast:
4,424 lb / 2,007 kg
S.A./Disp.:
17.09
Bal./Disp.:
44.00
Disp./Len.:
213.95
Construction:
FG
Ballast Type:
First Built:
1976
Last Built:
1980
# Built:
69
Builder:
Camper & Nicholson Ltd. (UK)
Designer:
Ron Holland
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Yanmar
Model:
YS12
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
17.09
Bal./Disp.:
44.00
Disp./Len.:
213.95
Comfort Ratio:
23.68

Rig and Sail Particulars

I:
42.20 ft / 12.86 m
J:
14.20 ft / 4.33 m
P:
37.40 ft / 11.40 m
E:
10.50 ft / 3.20 m
SPL/TPS:
ISP:
S.A. Fore:
299.62 ft2 / 27.84 m2
S.A. Main:
196.35 ft2 / 18.24 m2
S.A. Total (100% Fore + Main Triangles)
495.97 ft2 / 46.08 m2
S.A./Disp. (calc.):
17.09
Est. Forestay Len.:
44.53 ft / 13.57 m

Sailboat Links

Designers:
Builders:
Associations:

Notes

Designed as IOR 3/4 ton. The prototype was 'Golden Delicious', winner of the 1975 Fasnet.



.
