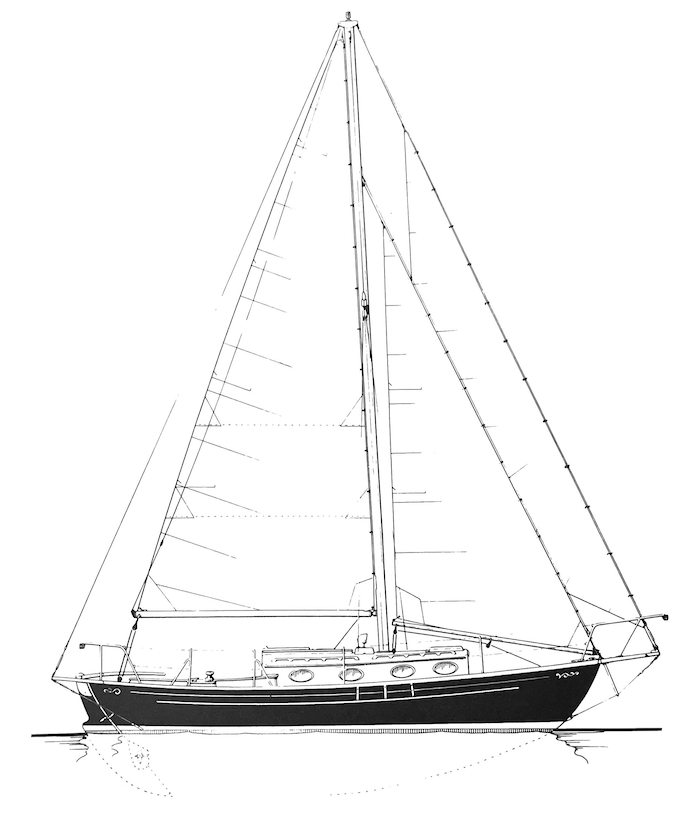

NIMBLE VOYAGER 26

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Long Keel
Rigging Type: Cutter
LOA: 26.00 ft / 7.92 m
LWL: 21.25 ft / 6.48 m
S.A. (reported): 360.00 ft² / 33.45 m²
Beam: 8.25 ft / 2.51 m
Displacement: 6,700.00 lb / 3,039 kg
Ballast: 2,750.00 lb / 1,247 kg
Max Draft: 3.33 ft / 1.01 m
Construction: FG
First Built: 1989
Builder: Nimble Boats (USA)
Designer: Daniel J. Avoures

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Type: Diesel
HP: 12

Sailboat Calculations

Definitions
S.A. / Displ.: 16.26
Bal. / Displ.: 41.04
Disp: / Len: 311.71
Comfort Ratio: 27.46
Capsize Screening Formula: 1.75
Hull Speed: 6.18 kn
Pounds/Inch Immersion: 626.41 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Sailboat Links

Builders: Nimble Boats Works Inc. (USA)
Download Boat Record:
