NORLIN 34 MK I

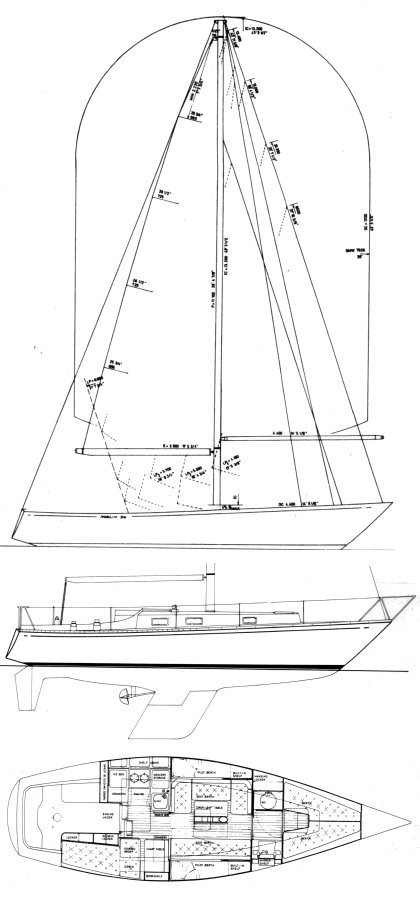

NORLIN 34 MK I drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
33.67 ft / 10.26 m
LWL:
26.75 ft / 8.15 m
S.A. (reported):
522.00 ft2 / 48.50 m2
Beam:
11.05 ft / 3.37 m
Draft (max):
6.30 ft / 1.92 m
Draft (min):
Displacement:
1,300 lb / 590 kg
Ballast:
5,075 lb / 2,302 kg
S.A./Disp.:
70.26
Bal./Disp.:
390.38
Disp./Len.:
30.32
Construction:
FG
Ballast Type:
First Built:
1972
Last Built:
# Built:
120
Builder:
Solna Marine (SWE)
Designer:
Peter Norlin
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Farymann
Model:
LA
Type:
Diesel
HP:
12
Water:
Fuel:
10 gals / 38 L

Sailboat Calculations

S.A./Disp.:
70.26
Bal./Disp.:
390.38
Disp./Len.:
30.32
Comfort Ratio:
2.84

Rig and Sail Particulars

I:
43.40 ft / 13.23 m
J:
14.43 ft / 4.40 m
P:
36.41 ft / 11.10 m
E:
11.48 ft / 3.50 m
SPL/TPS:
ISP:
S.A. Fore:
313.13 ft2 / 29.09 m2
S.A. Main:
208.99 ft2 / 19.42 m2
S.A. Total (100% Fore + Main Triangles)
522.12 ft2 / 48.51 m2
S.A./Disp. (calc.):
70.28
Est. Forestay Len.:
45.74 ft / 13.94 m

Sailboat Links

Designers:
Associations:

Notes

Hulls molded by Älvdalen Plastic (SWE). The MkII version was introduced in 1975 which was longer and had a taller rig. Designed to fall into the IOR 3/4 ton bracket.



.
