OCEANIS 473 (BENETEAU)

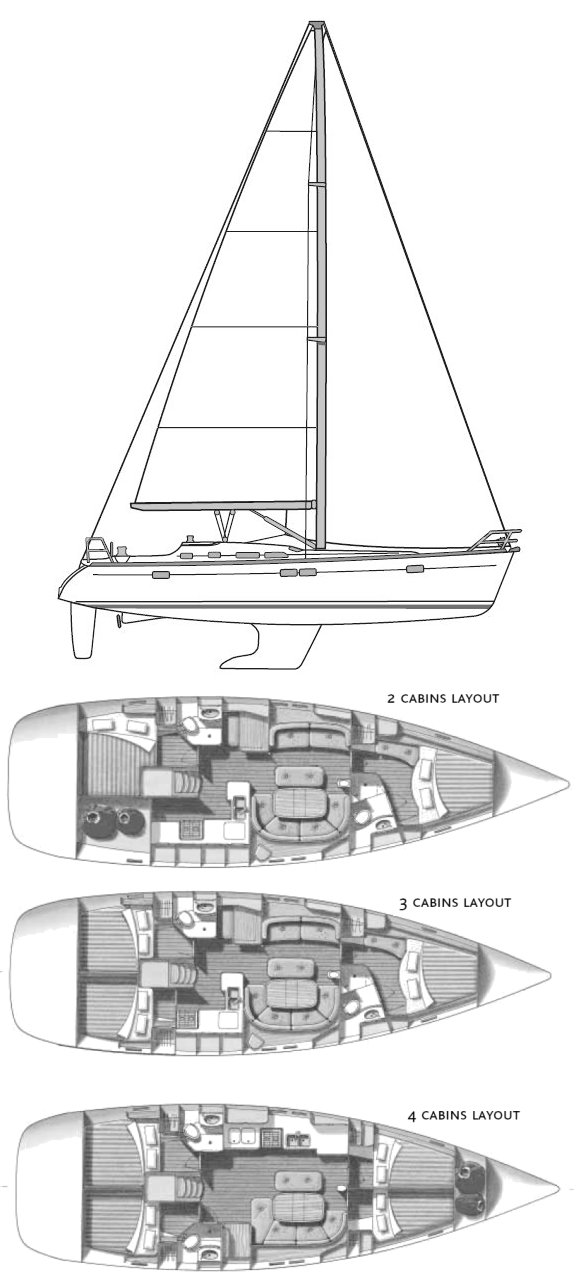

OCEANIS 473 (BENETEAU) photo OCEANIS 473 (BENETEAU) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
LOA:
46.92 ft / 14.30 m
LWL:
43.83 ft / 13.36 m
S.A. (reported):
898.00 ft2 / 83.43 m2
Beam:
14.16 ft / 4.32 m
Draft (max):
5.58 ft / 1.70 m
Draft (min):
Displacement:
24,277 lb / 11,012 kg
Ballast:
8,157 lb / 3,700 kg
S.A./Disp.:
17.20
Bal./Disp.:
33.60
Disp./Len.:
128.72
Construction:
FG
Ballast Type:
Iron
First Built:
2000
Last Built:
2005
# Built:
Builder:
Beneteau
Designer:
Groupe Finot
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Model:
Type:
Diesel
HP:
Water:
222 gals.
Fuel:
57 gals.

Sailboat Calculations

S.A./Disp.:
17.20
Bal./Disp.:
33.60
Disp./Len.:
128.72
Comfort Ratio:
24.58

Rig and Sail Particulars

I:
53.83 ft / 16.41 m
J:
18.25 ft / 5.56 m
P:
47.67 ft / 14.53 m
E:
17.08 ft / 5.21 m
SPL/TPS:
ISP:
S.A. Fore:
491.20 ft2 / 45.63 m2
S.A. Main:
407.10 ft2 / 37.82 m2
S.A. Total (100% Fore + Main Triangles)
898.30 ft2 / 83.45 m2
S.A./Disp. (calc.):
17.21
Est. Forestay Len.:
56.84 ft / 17.32 m

Sailboat Links

Builders:
Related Sailboats:

Notes

Hull Length:46.42’ Draft(deep keel):6.92’ Ballast:(deep keel):7,275 lbs Also called, or similar to, BENETEAU 473. See BENETEAU 473.



.
