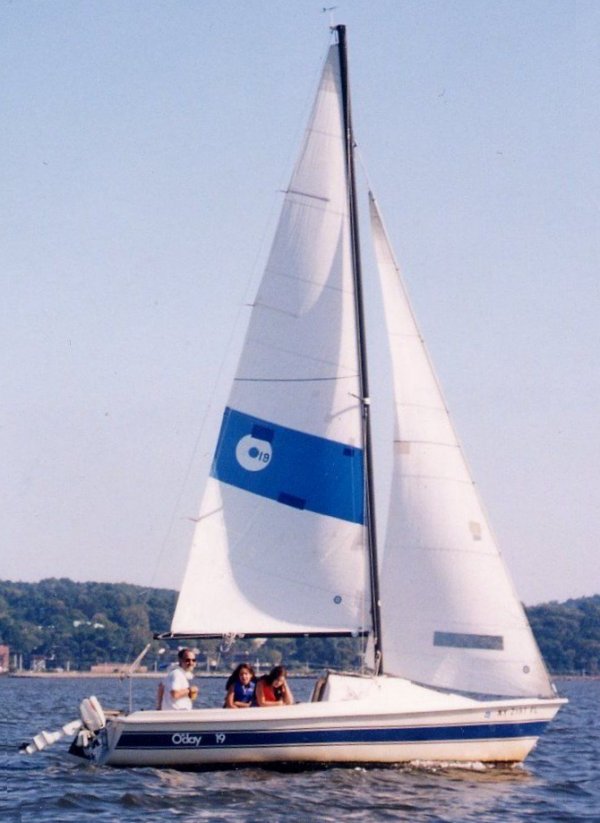

O'DAY 19

Sailboat Specifications

both US imperial metric

Hull Type:

Keel/Cbrd.

Rigging Type:

Fractional Sloop

LOA:

19.00 ft / 5.79 m

LWL:

16.67 ft / 5.08 m

Beam:

7.75 ft / 2.36 m

S.A. (reported):

179.00 ft² / 16.63 m²

Draft (max):

4.33 ft / 1.32 m

Draft (min):

1.00 ft / 0.30 m

Displacement:

2,040 lb / 925 kg

Ballast:

300 lb / 136 kg

S.A./Disp.:

17.85

Bal./Disp.:

14.71

Disp./Len.:

196.60

Construction:

FG

First Built:

1979

# Built:

525

Builder:

O'Day Corp. (USA)

Designer:

C. Raymond Hunt Associates

Sailboat Calculations

Definitions

S.A./Disp.:

17.85

Bal./Disp.:

14.71

Disp./Len.:

196.60

Comfort Ratio:

11.86

Capsize Screening Formula:

2.45

S#:

2.84

Rig and Sail Particulars

help

I:

22.00 ft / 6.71 m

J:

7.00 ft / 2.13 m

P:

24.50 ft / 7.47 m

E:

8.30 ft / 2.53 m

PY:

4.30 ft / 1.31 m

S.A. Fore:

77.00 ft² / 7.15 m²

S.A. Main:

101.68 ft² / 9.45 m²

S.A. Total (100% Fore + Main Triangles)

178.68 ft² / 16.60 m²

S.A./Disp. (calc.):

17.81

Est. Forestay Len.:

23.09 ft / 7.04 m

Mast Height from DWL:

29.33 ft / 8.94 m

Sailboat Links

Designers:

Raymond Hunt (C.R. Hunt & Assoc.)

John Deknatel

Builders:

O'Day Corp.

Bangor Punta Corp.

Download Boat Record:

PDF

Notes

Centerboard weight = 52 lbs / 23.6 kg
Displacement includes a crew weight of 640 lbs / 290.3 kg
Minimum trailering weight = 1350 lbs / 612.35 kg
