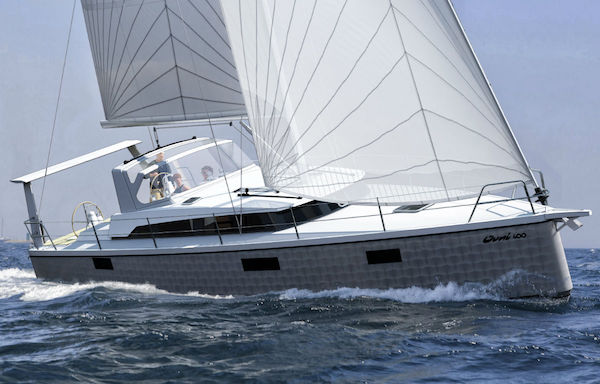

OVNI 400

Sailboat Specifications

both US imperial metric

Hull Type:

Lifting keel with dual rudders

Rigging Type:

Fractional Sloop

LOA:

42.32 ft / 12.90 m

LWL:

37.96 ft / 11.57 m

Beam:

14.27 ft / 4.35 m

S.A. (reported):

914.93 ft² / 85.00 m²

Draft (max):

9.45 ft / 2.88 m

Draft (min):

3.22 ft / 0.98 m

Displacement:

24,692 lb / 11,200 kg

Ballast:

8,598 lb / 3,900 kg

S.A./Disp.:

17.33

Bal./Disp.:

34.82

Disp./Len.:

201.53

Construction:

Aluminium

Ballast Type:

Cast iron centerboard

First Built:

2019

Builder:

Alubat

Designer:

Mortain & Mavrikios

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo

Model:

D2-50

Type:

Diesel

HP:

50

Fuel:

143 gals / 540 L

Sailboat Calculations

Definitions

S.A./Disp.:

17.33

Bal./Disp.:

34.82

Disp./Len.:

201.53

Comfort Ratio:

28.20

Capsize Screening Formula:

1.96

S#:

2.63

Rig and Sail Particulars

help

I:

54.46 ft / 16.60 m

J:

16.40 ft / 5.00 m

P:

48.50 ft / 14.78 m

E:

17.50 ft / 5.33 m

S.A. Fore:

446.57 ft² / 41.49 m²

S.A. Main:

424.38 ft² / 39.43 m²

S.A. Total (100% Fore + Main Triangles)

870.95 ft² / 80.91 m²

S.A./Disp. (calc.):

16.50

Est. Forestay Len.:

56.88 ft / 17.34 m

Mast Height from DWL:

60.70 ft / 18.50 m

Accommodations

Headroom:

6.56 ft / 2.00 m

Water:

106 gals / 400 L

Sailboat Links

Designers:

Mortain & Mavrikios

Builders:

Alubat (FRA)

Download Boat Record:

PDF

Notes

HULL LENGTH: 12.28m/40.29ft
Displacement = light. Max load displacement = 13,400 kg/29542 lbs
SA with square top main: 93 sqm / 1001 sqft
