PACESHIP 23 (C&C)

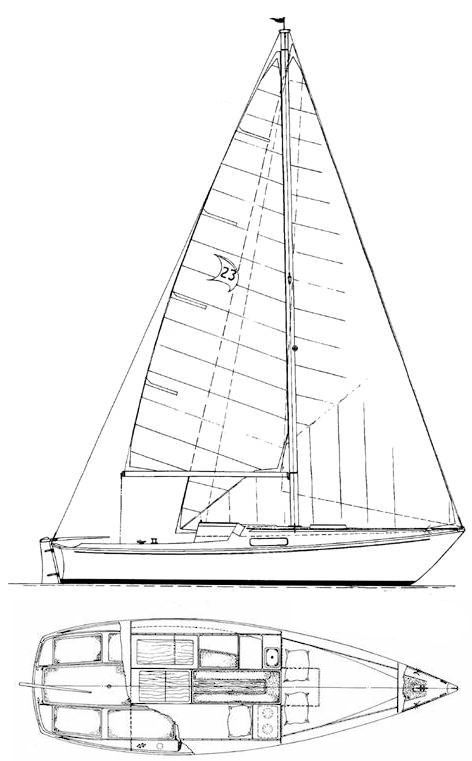

PACESHIP 23 (C&C) drawing

Sailboat Specifications


Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
LOA:
23.00 ft / 7.01 m
LWL:
19.00 ft / 5.79 m
S.A. (reported):
225.00 ft2 / 20.90 m2
Beam:
8.00 ft / 2.44 m
Draft (max):
3.83 ft / 1.17 m
Draft (min):
Displacement:
2,300 lb / 1,043 kg
Ballast:
900 lb / 408 kg
S.A./Disp.:
20.71
Bal./Disp.:
39.13
Disp./Len.:
149.70
Construction:
FG
Ballast Type:
First Built:
1969
Last Built:
1978
# Built:
240
Builder:
Paceship Yachts (CAN)
Designer:
Cuthbertson & Cassian
Website:

Sailboat Calculations

S.A./Disp.:
20.71
Bal./Disp.:
39.13
Disp./Len.:
149.70
Comfort Ratio:
11.02

Rig and Sail Particulars

I:
27.00 ft / 8.23 m
J:
9.00 ft / 2.74 m
P:
23.00 ft / 7.01 m
E:
9.00 ft / 2.74 m
SPL/TPS:
ISP:
S.A. Fore:
121.50 ft2 / 11.29 m2
S.A. Main:
103.50 ft2 / 9.62 m2
S.A. Total (100% Fore + Main Triangles)
225.00 ft2 / 20.90 m2
S.A./Disp. (calc.):
20.71
Est. Forestay Len.:
28.46 ft / 8.67 m
