PETERSON 37

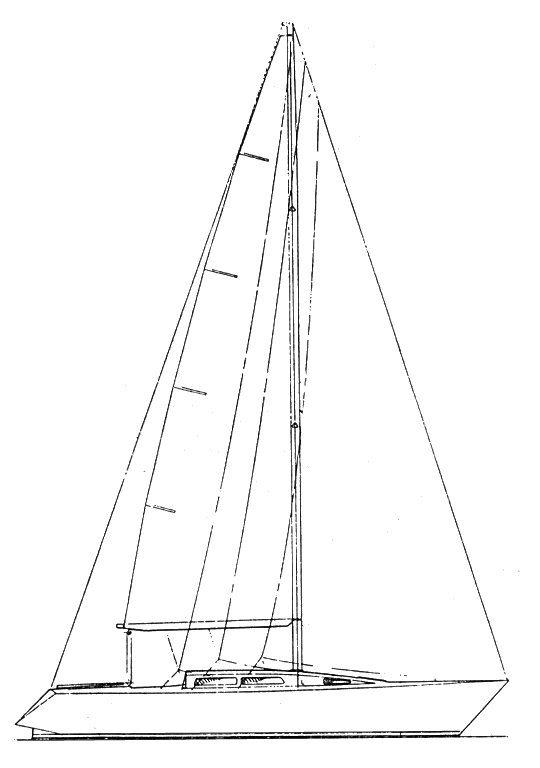

PETERSON 37 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
37.00 ft / 11.28 m
LWL:
30.92 ft / 9.42 m
S.A. (reported):
668.00 ft2 / 62.06 m2
Beam:
11.92 ft / 3.63 m
Draft (max):
6.75 ft / 2.06 m
Draft (min):
Displacement:
12,000 lb / 5,443 kg
Ballast:
6,000 lb / 2,722 kg
S.A./Disp.:
20.46
Bal./Disp.:
50.00
Disp./Len.:
181.22
Construction:
FG
Ballast Type:
Lead
First Built:
1981
Last Built:
# Built:
Builder:
Wiggers Custom Yachts Ltd.(CAN)
Designer:
Doug Peterson
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Universal
Model:
25
Type:
Diesel
HP:
23
Water:
55 gals / 208 L
Fuel:

Sailboat Calculations

S.A./Disp.:
20.46
Bal./Disp.:
50.00
Disp./Len.:
181.22
Comfort Ratio:
20.88

Rig and Sail Particulars

I:
50.40 ft / 15.36 m
J:
15.10 ft / 4.60 m
P:
44.20 ft / 13.47 m
E:
13.00 ft / 3.96 m
SPL/TPS:
ISP:
S.A. Fore:
380.52 ft2 / 35.35 m2
S.A. Main:
287.30 ft2 / 26.69 m2
S.A. Total (100% Fore + Main Triangles)
667.82 ft2 / 62.04 m2
S.A./Disp. (calc.):
20.46
Est. Forestay Len.:
52.61 ft / 16.04 m

Sailboat Links

Notes

aka WIGGERS 37.



.
