PHANTOM DINGHY (UK)

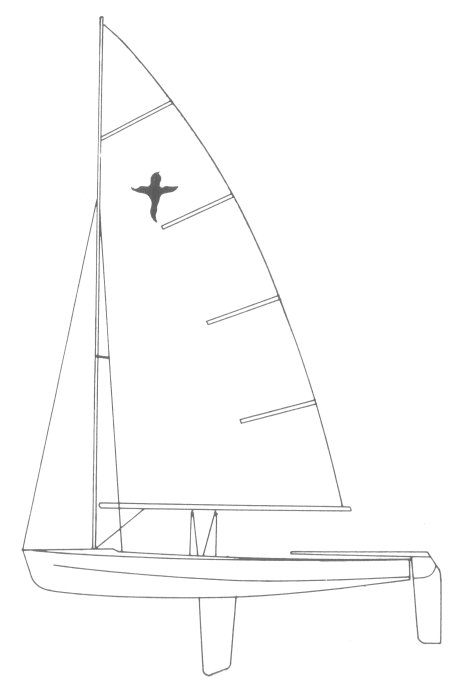

PHANTOM DINGHY (UK) insignia PHANTOM DINGHY (UK) photo PHANTOM DINGHY (UK) drawing

Sailboat Specifications


Hull Type:
Centerboard Dinghy
Rigging Type:
Cat (Marconi)
LOA:
14.50 ft / 4.42 m
LWL:
13.83 ft / 4.22 m
S.A. (reported):
105.00 ft2 / 9.75 m2
Beam:
5.50 ft / 1.68 m
Draft (max):
2.80 ft / 0.85 m
Draft (min):
0.50 ft / 0.15 m
Displacement:
134 lb / 61 kg
Ballast:
S.A./Disp.:
64.19
Bal./Disp.:
Disp./Len.:
22.61
Construction:
Wood/FG/composite
Ballast Type:
First Built:
1971
Last Built:
# Built:
1000
Builder:
Designer:
Paul Wright & Brian Taylor
Website:

Sailboat Calculations

S.A./Disp.:
64.19
Bal./Disp.:
Disp./Len.:
22.61
Comfort Ratio:
1.52
