RANGER 26-2 (MULL)

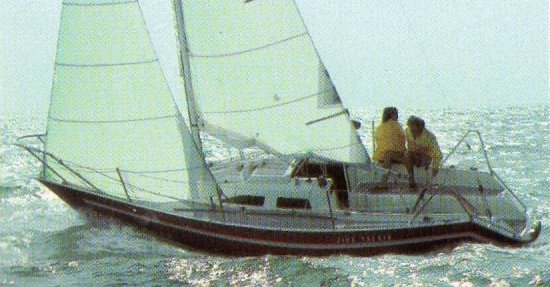

RANGER 26-2 (MULL) photo RANGER 26-2 (MULL) drawing

Sailboat Specifications


Hull Type:
Lifting Keel
Rigging Type:
Fractional Sloop
LOA:
26.00 ft / 7.92 m
LWL:
19.79 ft / 6.03 m
S.A. (reported):
284.00 ft2 / 26.38 m2
Beam:
8.00 ft / 2.44 m
Draft (max):
4.75 ft / 1.45 m
Draft (min):
1.71 ft / 0.52 m
Displacement:
3,000 lb / 1,361 kg
Ballast:
1,140 lb / 517 kg
S.A./Disp.:
21.90
Bal./Disp.:
38.00
Disp./Len.:
172.80
Construction:
FG
Ballast Type:
Lead
First Built:
1980
Last Built:
1982
# Built:
Builder:
Ranger Yachts/Lear Siegler
Designer:
Gary Mull
Website:

Sailboat Calculations

S.A./Disp.:
21.90
Bal./Disp.:
38.00
Disp./Len.:
172.80
Comfort Ratio:
13.41

Rig and Sail Particulars

I:
26.40 ft / 8.05 m
J:
8.80 ft / 2.68 m
P:
30.50 ft / 9.30 m
E:
11.00 ft / 3.35 m
SPL/TPS:
ISP:
S.A. Fore:
116.16 ft2 / 10.79 m2
S.A. Main:
167.75 ft2 / 15.58 m2
S.A. Total (100% Fore + Main Triangles)
283.91 ft2 / 26.38 m2
S.A./Disp. (calc.):
21.89
Est. Forestay Len.:
27.83 ft / 8.48 m

Sailboat Links

Notes

A completely new design from the the earlier RANGER 26, but also by Mull. Thanks to Daniel Marks, a former Jensen Marine employee, for providing original brochure and updated information. It's thought that very few of this model were built.



.
