SAN JUAN 33S

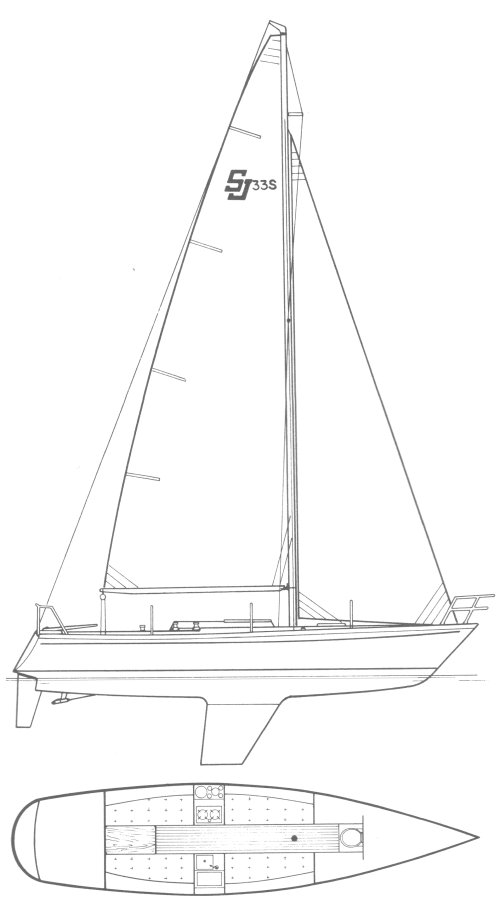

SAN JUAN 33S drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
33.10 ft / 10.09 m
LWL:
27.80 ft / 8.47 m
S.A. (reported):
464.00 ft2 / 43.11 m2
Beam:
7.95 ft / 2.42 m
Draft (max):
5.50 ft / 1.68 m
Draft (min):
Displacement:
5,700 lb / 2,585 kg
Ballast:
3,500 lb / 1,588 kg
S.A./Disp.:
23.34
Bal./Disp.:
61.40
Disp./Len.:
118.44
Construction:
FG
Ballast Type:
First Built:
1981
Last Built:
1982
# Built:
Builder:
Clark Boat Co. (USA)
Designer:
David Pedrick
Website:

Sailboat Calculations

S.A./Disp.:
23.34
Bal./Disp.:
61.40
Disp./Len.:
118.44
Comfort Ratio:
18.94

Rig and Sail Particulars

I:
35.10 ft / 10.70 m
J:
11.48 ft / 3.50 m
P:
40.03 ft / 12.20 m
E:
13.12 ft / 4.00 m
SPL/TPS:
12.00 ft / 3.66 m
ISP:
S.A. Fore:
201.47 ft2 / 18.72 m2
S.A. Main:
262.60 ft2 / 24.40 m2
S.A. Total (100% Fore + Main Triangles)
464.07 ft2 / 43.11 m2
S.A./Disp. (calc.):
23.34
Est. Forestay Len.:
36.93 ft / 11.26 m

Sailboat Links

Designers:
Builders:

Notes

Thanks to Craig Montague for providing additional information on this yacht.



.
