SEA BIRD 37

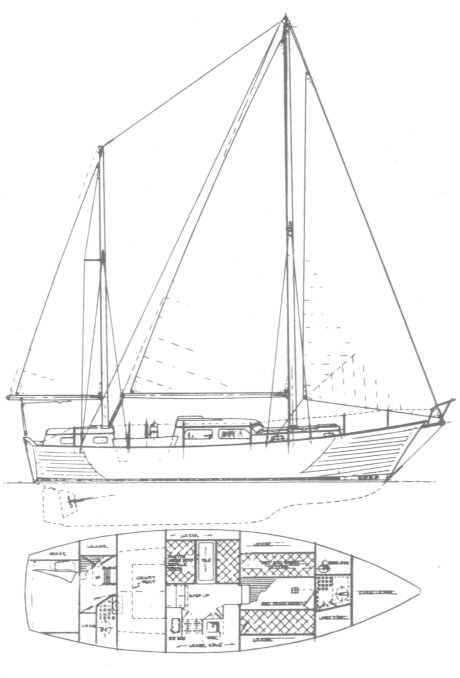

SEA BIRD 37 photo SEA BIRD 37 drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Masthead Ketch
LOA:
36.75 ft / 11.20 m
LWL:
32.50 ft / 9.91 m
S.A. (reported):
551.00 ft2 / 51.19 m2
Beam:
11.50 ft / 3.51 m
Draft (max):
4.00 ft / 1.22 m
Draft (min):
Displacement:
18,000 lb / 8,165 kg
Ballast:
6,000 lb / 2,722 kg
S.A./Disp.:
12.88
Bal./Disp.:
33.33
Disp./Len.:
234.09
Construction:
FG
Ballast Type:
First Built:
1973
Last Built:
# Built:
Builder:
Cooper Enterprises (CAN)
Designer:
Harden/Huntingford
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Perkins
Model:
4-108
Type:
Diesel
HP:
40
Water:
80 gals / 303 L
Fuel:
100 gals / 379 L

Sailboat Calculations

S.A./Disp.:
12.88
Bal./Disp.:
33.33
Disp./Len.:
234.09
Comfort Ratio:
31.84

Rig and Sail Particulars

Mast Height from DWL:
41.00 ft / 12.50 m

Sailboat Links

Notes

Ketch and Sloop, center and aft cockpit versions. Thanks to David Cooper for providing corrections.



.
