SLOCUM 43

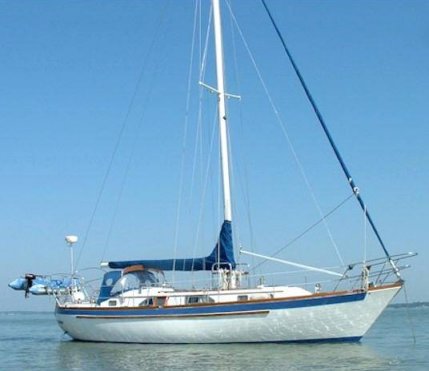

SLOCUM 43 photo SLOCUM 43 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
LOA:
42.50 ft / 12.95 m
LWL:
35.83 ft / 10.92 m
Beam:
12.92 ft / 3.94 m
S.A. (reported):
810.00 ft2 / 75.25 m2
Draft (max):
6.30 ft / 1.92 m
Draft (min):
Displacement:
28,104 lb / 12,748 kg
Ballast:
9,000 lb / 4,082 kg
S.A./Disp.:
14.08
Bal./Disp.:
32.02
Disp./Len.:
272.76
Construction:
FG
Ballast Type:
First Built:
1981
Last Built:
1990
# Built:
60
Builder:
Cruising Yachts Int./Formosa
Designer:
Stan Hundtingford
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Ford Lehman
Model:
4D61
Type:
Diesel
HP:
Water:
150 gals / 568 L
Fuel:
120 gals / 454 L

Sailboat Calculations

S.A./Disp.:
14.08
Bal./Disp.:
32.02
Disp./Len.:
272.76
Comfort Ratio:
38.02

Rig and Sail Particulars

I:
51.00 ft / 15.54 m
J:
18.50 ft / 5.64 m
P:
45.00 ft / 13.72 m
E:
15.00 ft / 4.57 m
SPL/TPS:
ISP:
S.A. Fore:
471.75 ft2 / 43.83 m2
S.A. Main:
337.50 ft2 / 31.35 m2
S.A. Total (100% Fore + Main Triangles)
809.25 ft2 / 75.18 m2
S.A./Disp. (calc.):
14.06
Est. Forestay Len.:
54.25 ft / 16.54 m
Mast Height from DWL:
59.00 ft / 17.98 m

Sailboat Links

Designers:
Related Sailboats:

Notes

The PASSPORT 42 is based on this same design. A Pilothouse version was also available.



.
