SailboatData.com - SNAPDRAGON 23 Sailboat

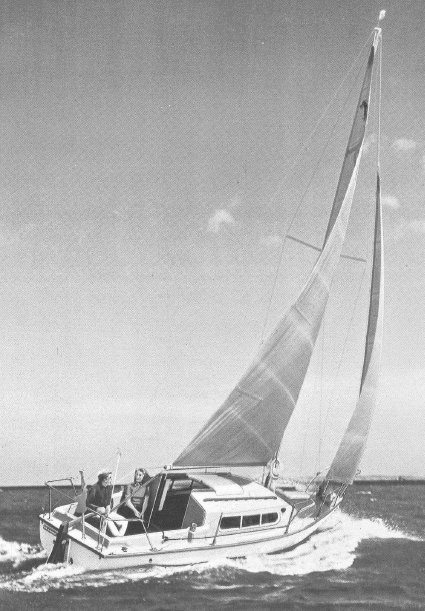

SNAPDRAGON 23

Sailboat Specifications

both US imperial metric

Hull Type:

Keel/Cbrd.

Rigging Type:

Masthead Sloop

LOA:

23.00 ft / 7.01 m

LWL:

19.83 ft / 6.04 m

Beam:

7.67 ft / 2.34 m

S.A. (reported):

185.00 ft² / 17.19 m²

Draft (max):

5.00 ft / 1.52 m

Draft (min):

2.25 ft / 0.69 m

Displacement:

2,950 lb / 1,338 kg

Ballast:

1,150 lb / 522 kg

S.A./Disp.:

14.43

Bal./Disp.:

38.98

Disp./Len.:

168.89

Construction:

First Built:

1962

Builder:

Thames Marine (UK)

Designer:

Thames Structural Plastics/Thames Marine

Sailboat Calculations

Definitions

S.A./Disp.:

14.43

Bal./Disp.:

38.98

Disp./Len.:

168.89

Comfort Ratio:

14.54

Capsize Screening Formula:

2.14

Sailboat Links

Builders:

Thames Marine (UK)

Associations:

Snapdragon, Mirage and Invaders Association

Download Boat Record:

PDF

Notes

The first Snapdragon and one of the first boats from Thames Marine.
First introduced as a keel/centerboarder.
Later versions:
Triple keel draft: 2.33'. Twin keel draft: 2.5'.
