SOVEREL 30 (MK II-III)

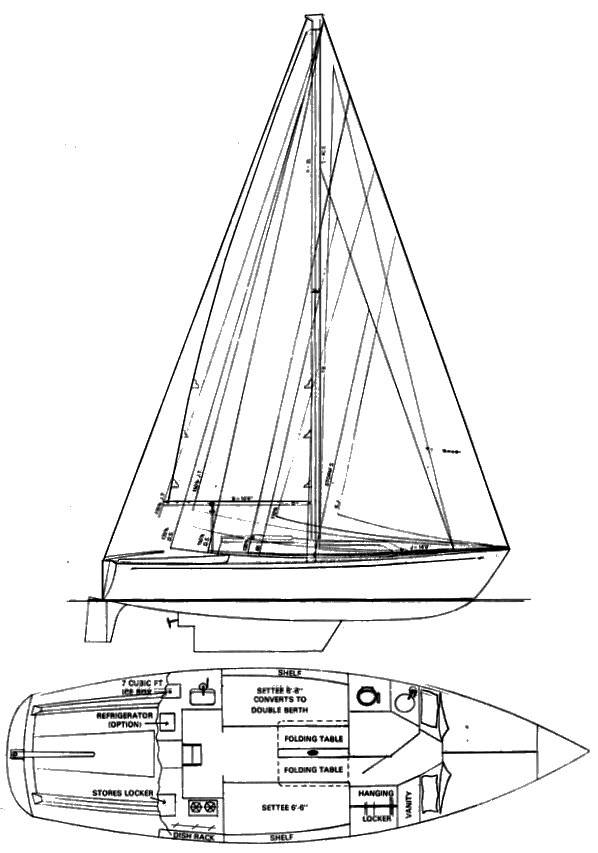

SOVEREL 30 (MK II-III) photo SOVEREL 30 (MK II-III) drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Cutter
LOA:
30.00 ft / 9.14 m
LWL:
26.00 ft / 7.92 m
S.A. (reported):
606.00 ft2 / 56.30 m2
Beam:
9.33 ft / 2.84 m
Draft (max):
9.50 ft / 2.90 m
Draft (min):
3.50 ft / 1.07 m
Displacement:
9,500 lb / 4,309 kg
Ballast:
3,400 lb / 1,542 kg
S.A./Disp.:
21.69
Bal./Disp.:
35.79
Disp./Len.:
241.30
Construction:
FG w/foam core
Ballast Type:
Lead
First Built:
1974
Last Built:
# Built:
Builder:
Soverel Marine
Designer:
Bill Soverel/Mark Soverel
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Westerbeke
Model:
Pilot 2
Type:
Diesel
HP:
20
Water:
55 gals.
Fuel:
20 gals.

Sailboat Calculations

S.A./Disp.:
21.69
Bal./Disp.:
35.79
Disp./Len.:
241.30
Comfort Ratio:
27.56

Rig and Sail Particulars

I:
40.50 ft / 12.34 m
J:
14.00 ft / 4.27 m
P:
43.00 ft / 13.11 m
E:
15.00 ft / 4.57 m
SPL/TPS:
ISP:
S.A. Fore:
283.50 ft2 / 26.34 m2
S.A. Main:
322.50 ft2 / 29.96 m2
S.A. Total (100% Fore + Main Triangles)
606.00 ft2 / 56.30 m2
S.A./Disp. (calc.):
21.69
Est. Forestay Len.:
42.85 ft / 13.06 m

Sailboat Links

Notes

Updated version of SOVEREL 30 (1969). (Includes MKII & MKIII) Cutter rig. Larger rudder with skeg (for MKIII). A later SOVEREL 30 (1979) is entirely different.



.
