SOVEREL 36 (1965)

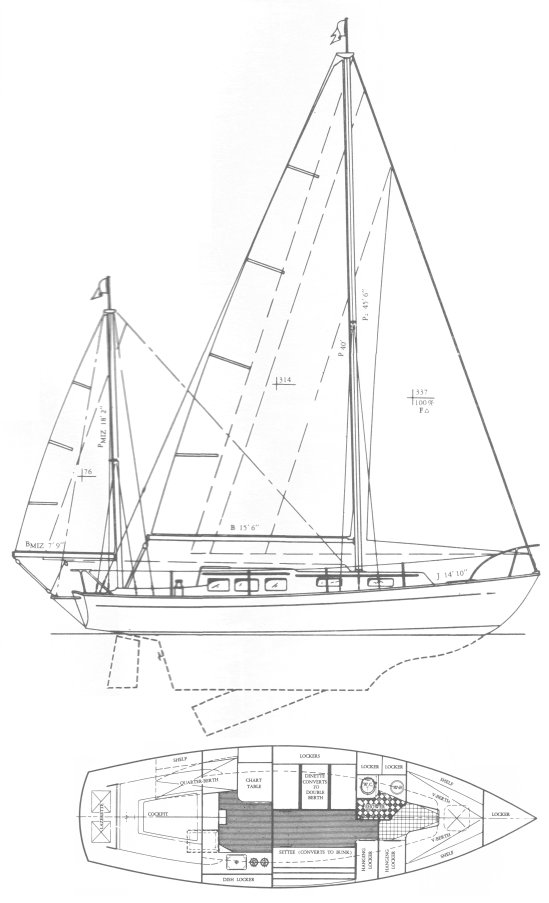

SOVEREL 36 (1965) drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Masthead Yawl
LOA:
36.00 ft / 10.97 m
LWL:
27.50 ft / 8.38 m
S.A. (reported):
718.00 ft2 / 66.70 m2
Beam:
11.00 ft / 3.35 m
Draft (max):
8.00 ft / 2.44 m
Draft (min):
3.92 ft / 1.19 m
Displacement:
12,000 lb / 5,443 kg
Ballast:
S.A./Disp.:
21.99
Bal./Disp.:
Disp./Len.:
257.59
Construction:
FG
Ballast Type:
First Built:
1965
Last Built:
# Built:
Builder:
Soverel Marine
Designer:
Bill Soverel
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Universal
Model:
Atomic 4
Type:
Gas
HP:

Sailboat Calculations

S.A./Disp.:
21.99
Bal./Disp.:
Disp./Len.:
257.59
Comfort Ratio:
25.31

Rig and Sail Particulars

I:
45.50 ft / 13.87 m
J:
14.83 ft / 4.52 m
P:
40.00 ft / 12.19 m
E:
15.50 ft / 4.72 m
PY:
18.16 ft / 5.54 m
EY:
7.75 ft / 2.36 m
SPL/TPS:
ISP:
S.A. Fore:
337.38 ft2 / 31.34 m2
S.A. Main:
310.00 ft2 / 28.80 m2
S.A. Total (100% Fore + Main Triangles)
647.38 ft2 / 60.14 m2
S.A./Disp. (calc.):
19.83
Est. Forestay Len.:
47.86 ft / 14.59 m

Sailboat Links

Related Sailboats:

Notes

Featured in 'Yachting', Dec. 1965.



.
