SOVEREL 41

Sailboat Specifications

both US imperial metric

Hull Type:

Keel/Cbrd.

Rigging Type:

Masthead Sloop

LOA:

41.33 ft / 12.60 m

LWL:

35.00 ft / 10.67 m

Beam:

11.00 ft / 3.35 m

S.A. (reported):

783.00 ft² / 72.74 m²

Draft (max):

10.00 ft / 3.05 m

Draft (min):

4.00 ft / 1.22 m

Displacement:

18,500 lb / 8,391 kg

Ballast:

9,000 lb / 4,082 kg

S.A./Disp.:

17.98

Bal./Disp.:

48.65

Disp./Len.:

192.63

Construction:

FG

Ballast Type:

Lead

First Built:

1971

Last Built:

1977

Builder:

Soverel Marine (USA)

Designer:

Bill Soverel

Auxiliary Power/Tanks (orig. equip.)

Fuel:

41 gals / 155 L

Sailboat Calculations

Definitions

S.A./Disp.:

17.98

Bal./Disp.:

48.65

Disp./Len.:

192.63

Comfort Ratio:

31.78

Capsize Screening Formula:

1.67

S#:

2.91

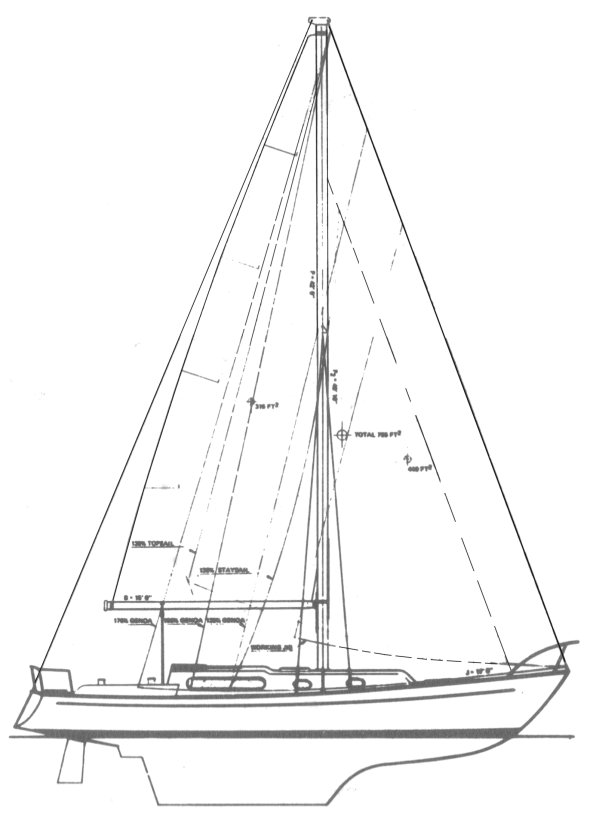

Rig and Sail Particulars

help

I:

53.50 ft / 16.31 m

J:

18.10 ft / 5.52 m

P:

46.00 ft / 14.02 m

E:

13.00 ft / 3.96 m

S.A. Fore:

484.18 ft² / 44.98 m²

S.A. Main:

299.00 ft² / 27.78 m²

S.A. Total (100% Fore + Main Triangles)

783.18 ft² / 72.76 m²

S.A./Disp. (calc.):

17.98

Est. Forestay Len.:

56.48 ft / 17.21 m

Accommodations

Water:

45 gals / 170 L

Sailboat Links

Builders:

Soverel Marine (USA)

Download Boat Record:

PDF

Notes

Available as Sloop or Yawl, fixed keel and centerboard versions.
