SWAN 44 (FRERS)

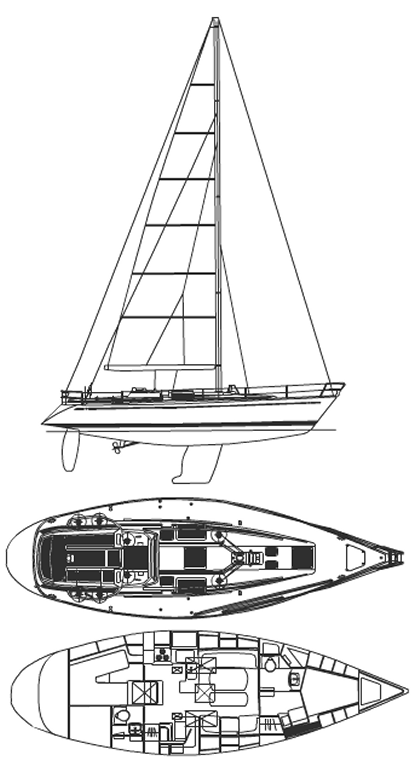

SWAN 44 (FRERS) photo SWAN 44 (FRERS) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
LOA:
44.00 ft / 13.41 m
LWL:
34.58 ft / 10.54 m
S.A. (reported):
890.00 ft2 / 82.68 m2
Beam:
13.67 ft / 4.17 m
Draft (max):
8.25 ft / 2.51 m
Draft (min):
Displacement:
24,500 lb / 11,113 kg
Ballast:
7,700 lb / 3,493 kg
S.A./Disp.:
16.95
Bal./Disp.:
31.43
Disp./Len.:
264.51
Construction:
FG
Ballast Type:
Lead
First Built:
1988
Last Built:
1994
# Built:
19
Builder:
Nautor
Designer:
German Frers
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Perkins
Model:
Type:
Diesel
HP:
50
Water:
90 gals.
Fuel:
70 gals.

Sailboat Calculations

S.A./Disp.:
16.95
Bal./Disp.:
31.43
Disp./Len.:
264.51
Comfort Ratio:
31.10

Rig and Sail Particulars

I:
57.35 ft / 17.48 m
J:
16.73 ft / 5.10 m
P:
50.75 ft / 15.47 m
E:
16.17 ft / 4.93 m
SPL/TPS:
ISP:
S.A. Fore:
479.73 ft2 / 44.57 m2
S.A. Main:
410.31 ft2 / 38.12 m2
S.A. Total (100% Fore + Main Triangles)
890.05 ft2 / 82.69 m2
S.A./Disp. (calc.):
16.95
Est. Forestay Len.:
59.74 ft / 18.21 m

Sailboat Links

Designers:

Notes

Shallow draft: 2.1m / 6.89' Not the same as an earlier (1972) SWAN 44 by S&S.



.
