SWAN 44 MK II (FRERS)

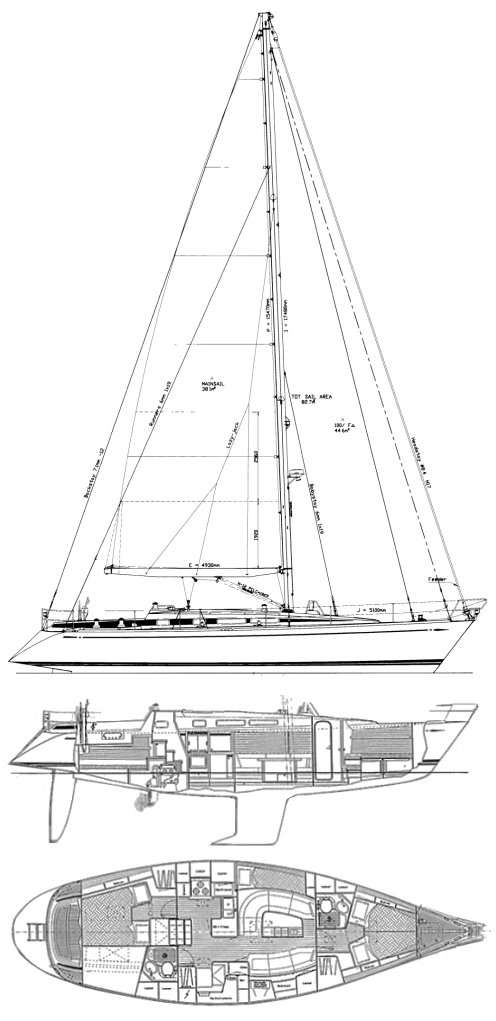

SWAN 44 MK II (FRERS) drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
LOA:
44.11 ft / 13.44 m
LWL:
34.65 ft / 10.56 m
S.A. (reported):
890.00 ft2 / 82.68 m2
Beam:
13.65 ft / 4.16 m
Draft (max):
7.15 ft / 2.18 m
Draft (min):
Displacement:
24,300 lb / 11,022 kg
Ballast:
8,400 lb / 3,810 kg
S.A./Disp.:
17.04
Bal./Disp.:
34.57
Disp./Len.:
260.76
Construction:
FG
Ballast Type:
Lead
First Built:
1996
Last Built:
2002
# Built:
68
Builder:
Nautor
Designer:
German Frers
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
MD22L
Type:
Diesel
HP:
Water:
100 gals.
Fuel:
105 gals.

Sailboat Calculations

S.A./Disp.:
17.04
Bal./Disp.:
34.57
Disp./Len.:
260.76
Comfort Ratio:
30.84

Rig and Sail Particulars

I:
57.35 ft / 17.48 m
J:
16.73 ft / 5.10 m
P:
50.75 ft / 15.47 m
E:
16.17 ft / 4.93 m
SPL/TPS:
ISP:
S.A. Fore:
479.73 ft2 / 44.57 m2
S.A. Main:
410.31 ft2 / 38.12 m2
S.A. Total (100% Fore + Main Triangles)
890.05 ft2 / 82.69 m2
S.A./Disp. (calc.):
17.04
Est. Forestay Len.:
59.74 ft / 18.21 m
