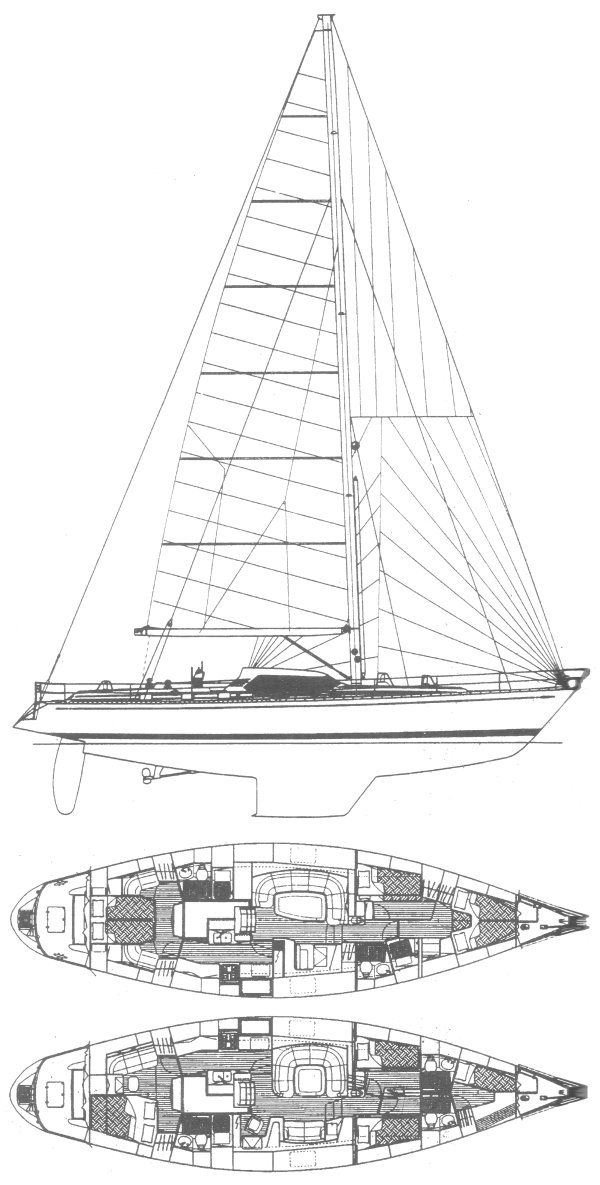

SWAN 57 RS

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Masthead Sloop

LOA:

57.38 ft / 17.49 m

LWL:

44.52 ft / 13.57 m

Beam:

15.91 ft / 4.85 m

S.A. (reported):

1,350.00 ft² / 125.42 m²

Draft (max):

7.55 ft / 2.30 m

Displacement:

54,013 lb / 24,500 kg

Ballast:

20,348 lb / 9,230 kg

S.A./Disp.:

15.18

Bal./Disp.:

37.67

Disp./Len.:

273.27

Construction:

FG

Ballast Type:

Lead

First Built:

1996

Last Built:

2001

# Built:

10

Builder:

Nautor

Designer:

German Frers

Auxiliary Power/Tanks (orig. equip.)

Make:

Perkins

Type:

Diesel

HP:

125

Fuel:

277 gals / 1,049 L

Sailboat Calculations

Definitions

S.A./Disp.:

15.18

Bal./Disp.:

37.67

Disp./Len.:

273.27

Comfort Ratio:

43.32

Capsize Screening Formula:

1.69

S#:

1.80

Rig and Sail Particulars

help

I:

69.39 ft / 21.15 m

J:

20.67 ft / 6.30 m

P:

61.22 ft / 18.66 m

E:

20.67 ft / 6.30 m

S.A. Fore:

717.15 ft² / 66.63 m²

S.A. Main:

632.71 ft² / 58.78 m²

S.A. Total (100% Fore + Main Triangles)

1,349.85 ft² / 125.41 m²

S.A./Disp. (calc.):

15.18

Est. Forestay Len.:

72.40 ft / 22.07 m

Accommodations

Water:

272 gals / 1,030 L

Sailboat Links

Designers:

German Frers

Builders:

Nautor (Swan sailboats)

Download Boat Record:

PDF

Notes

RS=raised salon.
A Keel/Centerboard version was also available.
