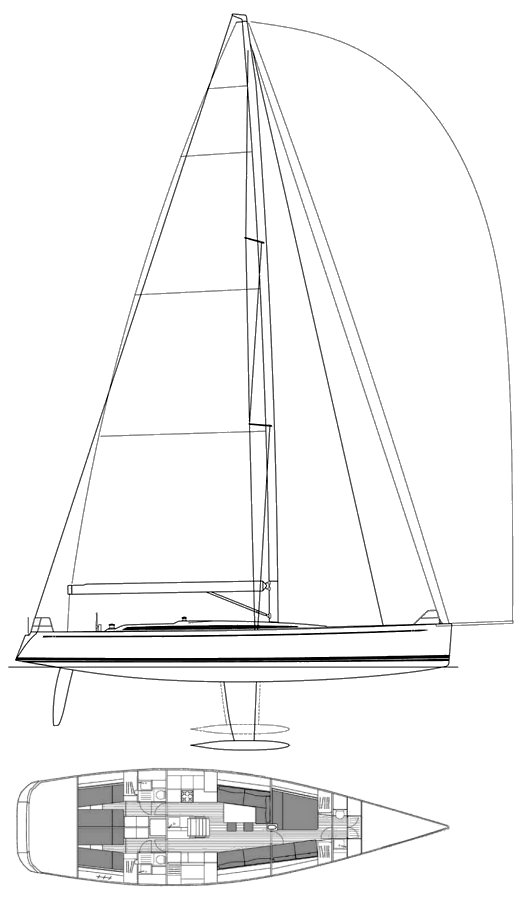

SWAN 60 FD

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/bulb & spade rudder

Rigging Type:

Fractional Sloop

LOA:

61.89 ft / 18.86 m

LWL:

54.80 ft / 16.70 m

Beam:

16.70 ft / 5.09 m

S.A. (reported):

2,081.00 ft² / 193.33 m²

Draft (max):

11.81 ft / 3.60 m

Displacement:

41,226 lb / 18,700 kg

Ballast:

16,975 lb / 7,700 kg

S.A./Disp.:

28.02

Bal./Disp.:

41.18

Disp./Len.:

111.84

Construction:

FG

Ballast Type:

Lead

First Built:

2006

# Built:

10

Builder:

Nautor

Designer:

German Frers

Website:

www.gazpromswan60class.com

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo or Yanmar

Type:

Diesel

HP:

110

Fuel:

132 gals / 500 L

Sailboat Calculations

Definitions

S.A./Disp.:

28.02

Bal./Disp.:

41.18

Disp./Len.:

111.84

Comfort Ratio:

26.35

Capsize Screening Formula:

1.94

S#:

5.62

Rig and Sail Particulars

help

I:

83.53 ft / 25.46 m

J:

23.19 ft / 7.07 m

P:

79.79 ft / 24.32 m

E:

27.88 ft / 8.50 m

S.A. Fore:

968.53 ft² / 89.98 m²

S.A. Main:

1,112.27 ft² / 103.33 m²

S.A. Total (100% Fore + Main Triangles)

2,080.80 ft² / 193.31 m²

S.A./Disp. (calc.):

28.02

Est. Forestay Len.:

86.69 ft / 26.42 m

Accommodations

Water:

105 gals / 397 L

Sailboat Links

Designers:

German Frers

Builders:

Nautor (Swan sailboats)

Download Boat Record:

PDF

Notes

Asym.Spin.: 320 m2/3444 sq.ft.
Class racing exists for this model in Europe.
A 'deck salon' version is also available.
