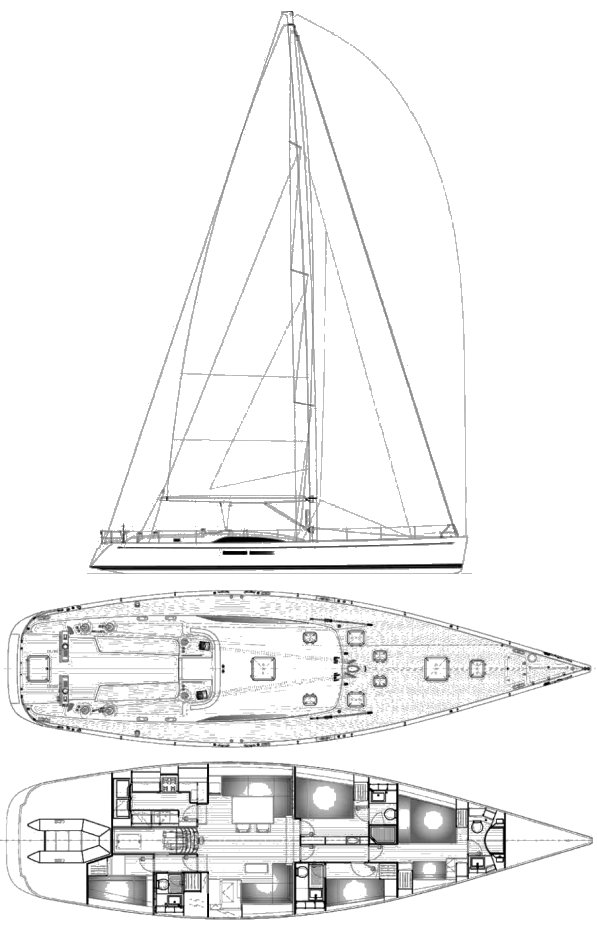

SWAN 66 S

Sailboat Specifications

both US imperial metric

Hull Type:

Fin w/spade rudder

Rigging Type:

Masthead Sloop

LOA:

66.01 ft / 20.12 m

LWL:

56.40 ft / 17.19 m

Beam:

17.68 ft / 5.39 m

S.A. (reported):

2,133.00 ft² / 198.16 m²

Draft (max):

10.50 ft / 3.20 m

Displacement:

66,000 lb / 29,937 kg

Ballast:

20,720 lb / 9,398 kg

S.A./Disp.:

20.99

Bal./Disp.:

31.39

Disp./Len.:

164.23

Construction:

FG

Ballast Type:

Lead

First Built:

2006

Builder:

Nautor

Designer:

German Frers

Auxiliary Power/Tanks (orig. equip.)

Make:

Yanmar

Type:

Diesel

HP:

163

Fuel:

343 gals / 1,298 L

Sailboat Calculations

Definitions

S.A./Disp.:

20.99

Bal./Disp.:

31.39

Disp./Len.:

164.23

Comfort Ratio:

37.54

Capsize Screening Formula:

1.75

S#:

3.68

Rig and Sail Particulars

help

I:

90.22 ft / 27.50 m

J:

24.44 ft / 7.45 m

P:

82.68 ft / 25.20 m

E:

24.93 ft / 7.60 m

S.A. Fore:

1,102.49 ft² / 102.42 m²

S.A. Main:

1,030.61 ft² / 95.75 m²

S.A. Total (100% Fore + Main Triangles)

2,133.09 ft² / 198.17 m²

S.A./Disp. (calc.):

20.99

Est. Forestay Len.:

93.47 ft / 28.49 m

Accommodations

Water:

333 gals / 1,261 L

Sailboat Links

Designers:

German Frers

Builders:

Nautor (Swan sailboats)

Download Boat Record:

PDF

Notes

Same hull as SWAN 66 FD (flush deck).
Both developed for the Swan 40th anniversary.
