SWAN 80

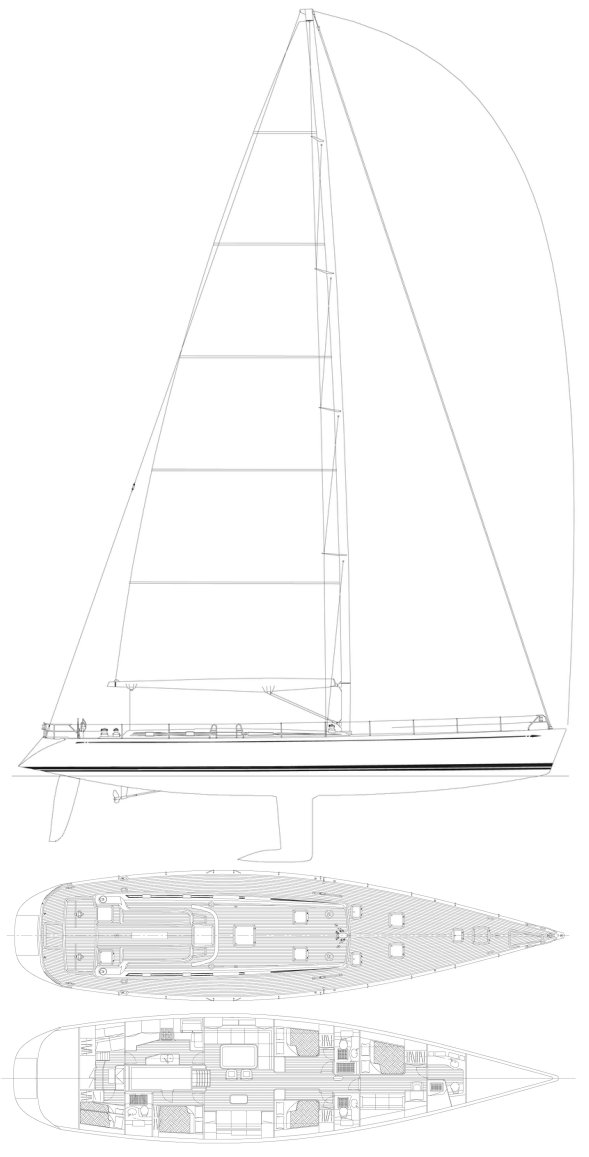

SWAN 80 photo SWAN 80 drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
LOA:
81.69 ft / 24.90 m
LWL:
69.29 ft / 21.12 m
S.A. (reported):
3,314.00 ft2 / 307.88 m2
Beam:
19.09 ft / 5.82 m
Draft (max):
13.78 ft / 4.20 m
Draft (min):
Displacement:
80,909 lb / 36,700 kg
Ballast:
S.A./Disp.:
28.48
Bal./Disp.:
Disp./Len.:
108.58
Construction:
FG
Ballast Type:
Lead
First Built:
1999
Last Built:
2004
# Built:
8
Builder:
Nautor (FIN)
Designer:
German Frers
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Yanmar
Model:
4LHA-STE
Type:
Diesel
HP:
240
Water:
317 gals.
Fuel:
528 gals.

Sailboat Calculations

S.A./Disp.:
28.48
Bal./Disp.:
Disp./Len.:
108.58
Comfort Ratio:
33.75

Rig and Sail Particulars

I:
104.98 ft / 32.00 m
J:
30.84 ft / 9.40 m
P:
99.41 ft / 30.30 m
E:
34.10 ft / 10.39 m
SPL/TPS:
ISP:
S.A. Fore:
1,618.79 ft2 / 150.39 m2
S.A. Main:
1,694.94 ft2 / 157.47 m2
S.A. Total (100% Fore + Main Triangles)
3,313.73 ft2 / 307.86 m2
S.A./Disp. (calc.):
28.48
Est. Forestay Len.:
109.42 ft / 33.35 m

Sailboat Links

Designers:

Notes

Assym.spinnaker 526 m²/5664 sq.ft. Not the same as a later series of SWAN 80's, also by Frers beginning in 2010.



.
