SWORDFISH

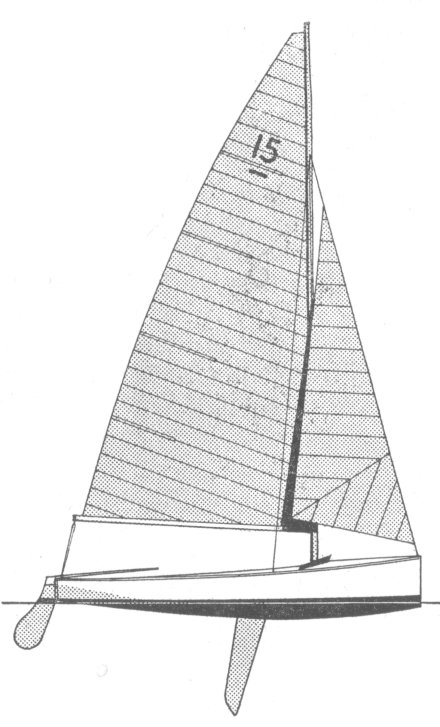

SWORDFISH insignia SWORDFISH drawing

Sailboat Specifications


Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
LOA:
15.00 ft / 4.57 m
LWL:
14.50 ft / 4.42 m
S.A. (reported):
130.00 ft2 / 12.08 m2
Beam:
5.00 ft / 1.52 m
Draft (max):
4.75 ft / 1.45 m
Draft (min):
0.75 ft / 0.23 m
Displacement:
875 lb / 397 kg
Ballast:
S.A./Disp.:
22.78
Bal./Disp.:
Disp./Len.:
128.13
Construction:
Hot molded plywood
Ballast Type:
First Built:
1946
Last Built:
1963
# Built:
200
Builder:
Fairey Marine
Designer:
Uffa Fox
Website:

Sailboat Calculations

S.A./Disp.:
22.78
Bal./Disp.:
Disp./Len.:
128.13
Comfort Ratio:
10.81

Sailboat Links

Designers:
Builders:
Related Sailboats:

Notes

With the introduction of fiberglass, the 'hot molded' contruction method (developed during WWII) became too expensive, and production of the SWORDFISH was discontinued in 1963. The same equipment, however, was used to build the first ABLACORE which has a slightly modified hull and more sail area.



.
