SYDNEY 38

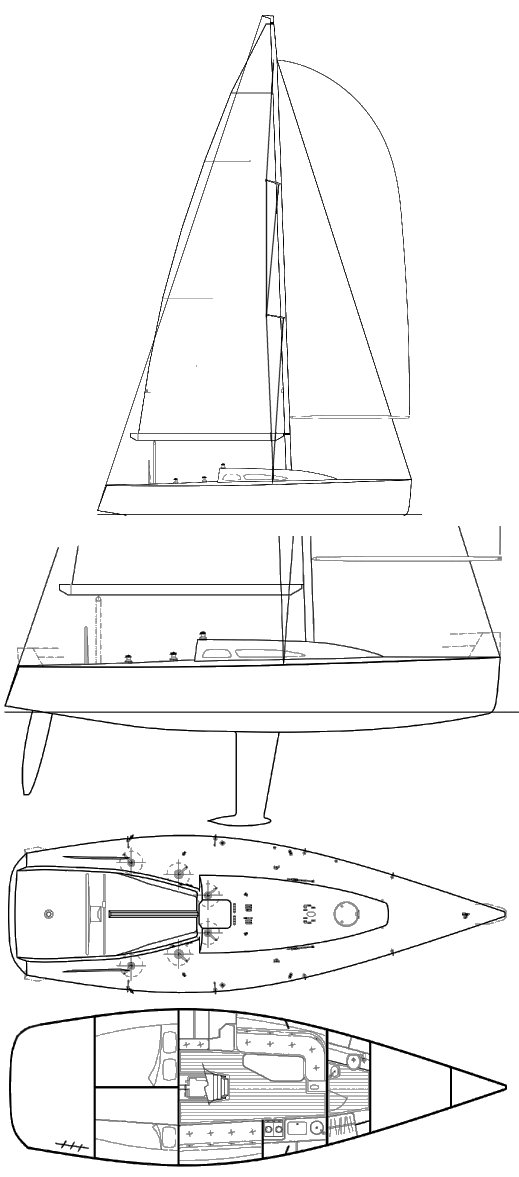

SYDNEY 38 photo SYDNEY 38 drawing

Sailboat Specifications


Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Fractional Sloop
LOA:
38.50 ft / 11.73 m
LWL:
35.27 ft / 10.75 m
Beam:
12.33 ft / 3.76 m
S.A. (reported):
842.00 ft2 / 78.22 m2
Draft (max):
8.67 ft / 2.64 m
Draft (min):
Displacement:
12,260 lb / 5,561 kg
Ballast:
4,255 lb / 1,930 kg
S.A./Disp.:
25.43
Bal./Disp.:
34.71
Disp./Len.:
124.75
Construction:
Composite
Ballast Type:
Lead
First Built:
1999
Last Built:
# Built:
65
Builder:
Sydney Yachts
Designer:
Murray Burns Dovell
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Yanmar
Model:
Type:
Diesel
HP:
38
Water:
50 gals / 189 L
Fuel:
25 gals / 95 L

Sailboat Calculations

S.A./Disp.:
25.43
Bal./Disp.:
34.71
Disp./Len.:
124.75
Comfort Ratio:
18.43
Capsize Screening Formula:
2.14

Rig and Sail Particulars

I:
52.33 ft / 15.95 m
J:
14.76 ft / 4.50 m
P:
50.52 ft / 15.40 m
E:
18.04 ft / 5.50 m
SPL/TPS:
ISP:
S.A. Fore:
386.20 ft2 / 35.88 m2
S.A. Main:
455.69 ft2 / 42.34 m2
S.A. Total (100% Fore + Main Triangles)
841.89 ft2 / 78.21 m2
S.A./Disp. (calc.):
25.42
Est. Forestay Len.:
54.37 ft / 16.57 m
