TANZER 16

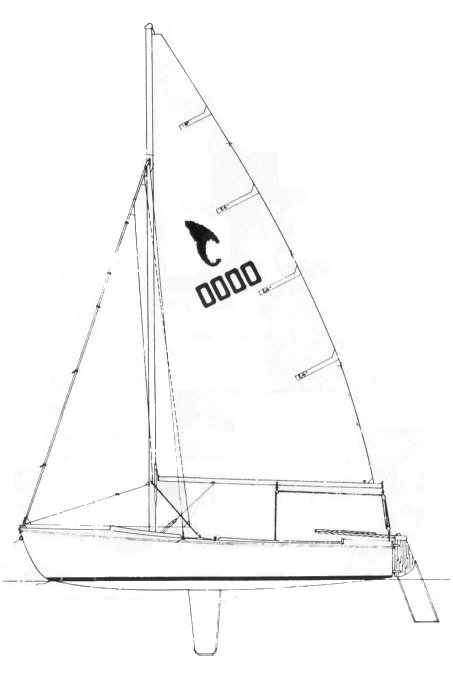

TANZER 16 drawing

Sailboat Specifications


Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
LOA:
16.33 ft / 4.98 m
LWL:
15.58 ft / 4.75 m
S.A. (reported):
135.00 ft2 / 12.54 m2
Beam:
6.17 ft / 1.88 m
Draft (max):
2.75 ft / 0.84 m
Draft (min):
0.58 ft / 0.18 m
Displacement:
450 lb / 204 kg
Ballast:
S.A./Disp.:
36.83
Bal./Disp.:
Disp./Len.:
53.12
Construction:
FG
Ballast Type:
First Built:
1963
Last Built:
1986
# Built:
1900
Builder:
Tanzer Industries Ltd. (CAN)
Designer:
Johann Tanzer
Website:

Sailboat Calculations

S.A./Disp.:
36.83
Bal./Disp.:
Disp./Len.:
53.12
Comfort Ratio:
3.89

Sailboat Links

Designers:
Related Sailboats:

Notes

Originally called the CONSTELLATION. The OVERNIGHTER, was simlar but with a cuddy cabin. The class association aquired the original tooling for the TANZER 16 when Tanzer Industries closed in 1986. But it is unknown if any other boats were built after this date.



.
