TANZER 31

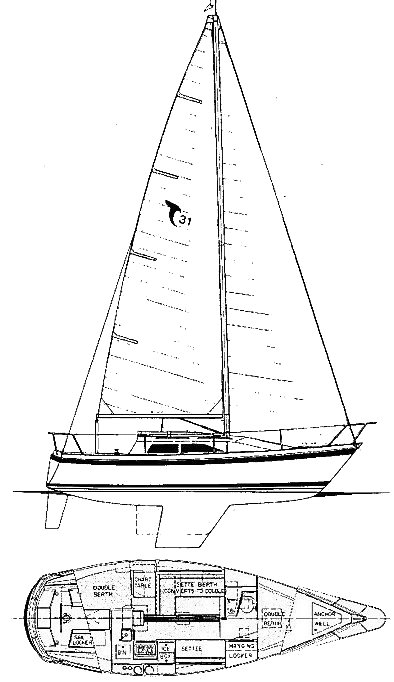

TANZER 31 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
30.58 ft / 9.32 m
LWL:
25.00 ft / 7.62 m
S.A. (reported):
468.00 ft2 / 43.48 m2
Beam:
10.50 ft / 3.20 m
Draft (max):
5.25 ft / 1.60 m
Draft (min):
Displacement:
8,300 lb / 3,765 kg
Ballast:
3,400 lb / 1,542 kg
S.A./Disp.:
18.33
Bal./Disp.:
40.96
Disp./Len.:
237.14
Construction:
FG
Ballast Type:
First Built:
1984
Last Built:
# Built:
Builder:
Tanzer Industries Ltd. (CAN)
Designer:
George Cuthbertson
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Yanmar
Model:
Type:
Diesel
HP:
15
Water:
44 gals.
Fuel:
44 gals.

Sailboat Calculations

S.A./Disp.:
18.33
Bal./Disp.:
40.96
Disp./Len.:
237.14
Comfort Ratio:
20.98

Rig and Sail Particulars

I:
41.00 ft / 12.50 m
J:
12.00 ft / 3.66 m
P:
37.00 ft / 11.28 m
E:
12.00 ft / 3.66 m
SPL/TPS:
ISP:
S.A. Fore:
246.00 ft2 / 22.85 m2
S.A. Main:
222.00 ft2 / 20.62 m2
S.A. Total (100% Fore + Main Triangles)
468.00 ft2 / 43.48 m2
S.A./Disp. (calc.):
18.33
Est. Forestay Len.:
42.72 ft / 13.02 m
Mast Height from DWL:
45.00 ft / 13.72 m

Sailboat Links

Designers:

Notes

Shoal draft version: 4.0'/1.2m; Disp: 8700 lbs./3955 kg.



.
