TATOOSH 42

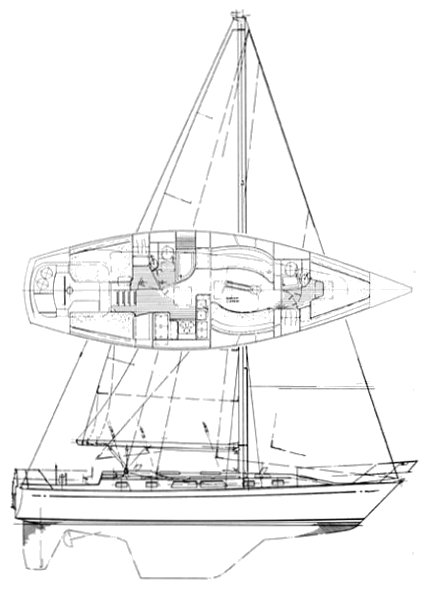

TATOOSH 42 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
41.83 ft / 12.75 m
LWL:
36.42 ft / 11.10 m
S.A. (reported):
799.00 ft2 / 74.23 m2
Beam:
12.75 ft / 3.89 m
Draft (max):
5.83 ft / 1.78 m
Draft (min):
Displacement:
21,258 lb / 9,642 kg
Ballast:
8,700 lb / 3,946 kg
S.A./Disp.:
16.72
Bal./Disp.:
40.93
Disp./Len.:
196.45
Construction:
FG
Ballast Type:
First Built:
1981
Last Built:
# Built:
Builder:
Ta Shing Yacht Building (TAIWAN)
Designer:
Robert Perry
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Westerbeke or Pathfinder
Model:
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
16.72
Bal./Disp.:
40.93
Disp./Len.:
196.45
Comfort Ratio:
29.11

Rig and Sail Particulars

I:
50.50 ft / 15.39 m
J:
16.50 ft / 5.03 m
P:
45.00 ft / 13.72 m
E:
17.00 ft / 5.18 m
SPL/TPS:
ISP:
S.A. Fore:
416.63 ft2 / 38.71 m2
S.A. Main:
382.50 ft2 / 35.54 m2
S.A. Total (100% Fore + Main Triangles)
799.13 ft2 / 74.24 m2
S.A./Disp. (calc.):
16.73
Est. Forestay Len.:
53.13 ft / 16.19 m
