TIBURON 36

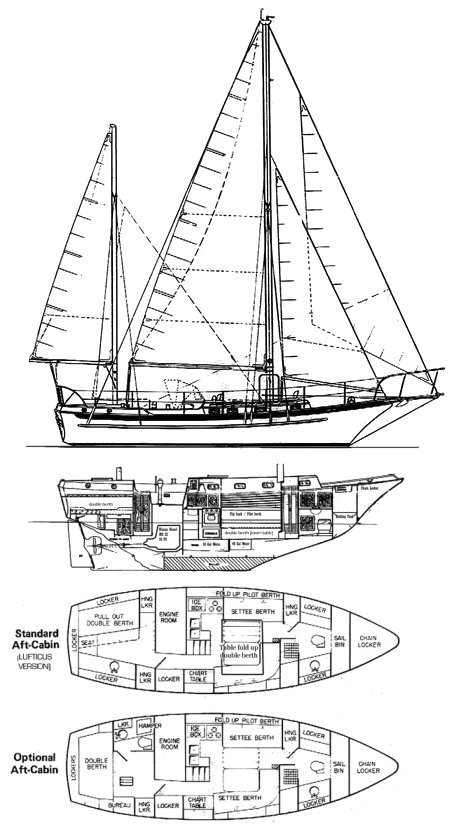

TIBURON 36 drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Staysail Ketch
LOA:
36.20 ft / 11.03 m
LWL:
29.25 ft / 8.92 m
S.A. (reported):
960.00 ft2 / 89.19 m2
Beam:
11.42 ft / 3.48 m
Draft (max):
5.00 ft / 1.52 m
Draft (min):
Displacement:
21,000 lb / 9,525 kg
Ballast:
7,000 lb / 3,175 kg
S.A./Disp.:
20.26
Bal./Disp.:
33.33
Disp./Len.:
374.62
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
# Built:
Builder:
Designer:
W.I.B. Crealock
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Chrysler/Nissian
Model:
Type:
Diesel
HP:
20

Sailboat Calculations

S.A./Disp.:
20.26
Bal./Disp.:
33.33
Disp./Len.:
374.62
Comfort Ratio:
40.42

Sailboat Links

Designers:
Related Sailboats:

Notes

In 1976 the molds were adapted to produce the CABO RICO 38 (aft cockpit).



.
