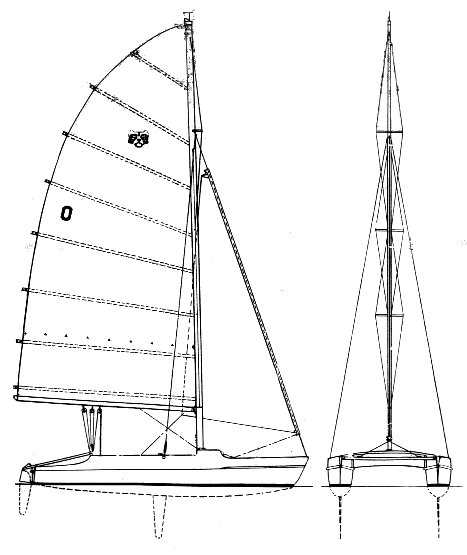

TIGER CAT

Sailboat Specifications

both US imperial metric

Hull Type:

Catamaran Twin Cbrd.

Rigging Type:

Fractional Sloop

LOA:

17.00 ft / 5.18 m

LWL:

15.83 ft / 4.82 m

Beam:

7.95 ft / 2.42 m

S.A. (reported):

285.00 ft² / 26.48 m²

Draft (max):

6.17 ft / 1.88 m

Draft (min):

3.08 ft / 0.94 m

Displacement:

585 lb / 265 kg

S.A./Disp.:

65.29

Disp./Len.:

65.84

Construction:

FG

First Built:

1960

Last Built:

1963

# Built:

160

Builder:

Pearson Yachts (USA)

Designer:

William B. Harris

Sailboat Calculations

Definitions

S.A./Disp.:

65.29

KSP:

1.39

Disp./Len.:

65.84

Sailboat Links

Designers:

Robert B. Harris

Builders:

Pearson Yachts

Lippincott Boat Works (USA)

Download Boat Record:

PDF

Notes

Said to be the first one-design catamaran class organized in the US.
Based on a cold molded wood prototype, 'Tiger Cat', winner of 'Yachting' One of a Kind Regatta in 1959.
