TITANIA 26

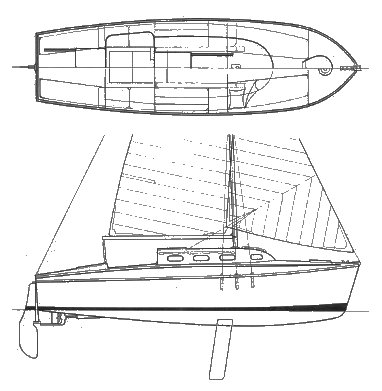

TITANIA 26 drawing

Sailboat Specifications


Hull Type:
Twin Keel
Rigging Type:
Fractional Sloop
LOA:
26.00 ft / 7.92 m
LWL:
Beam:
7.75 ft / 2.36 m
S.A. (reported):
262.00 ft2 / 24.34 m2
Draft (max):
5.75 ft / 1.75 m
Draft (min):
2.50 ft / 0.76 m
Displacement:
4,000 lb / 1,814 kg
Ballast:
950 lb / 431 kg
S.A./Disp.:
16.68
Bal./Disp.:
23.75
Disp./Len.:
Construction:
Wood (hot molded veneers)
Ballast Type:
First Built:
1959
Last Built:
# Built:
12
Builder:
Fairey Marine (UK)
Designer:
Uffa Fox
Website:

Sailboat Calculations

S.A./Disp.:
16.68
Bal./Disp.:
23.75
Disp./Len.:
Capsize Screening Formula:
1.96

Sailboat Links

Designers:
Builders:

Notes

Tandem keels(centerboards). Similar to the ATALANTA 26 but with shorter cockpit. Probably named after the flying boat built by Fairy in the 1920's.
